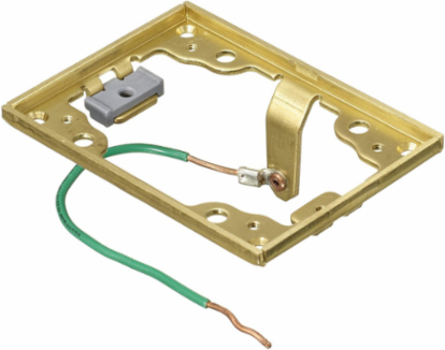

Brass Rectangular 1-Gang Cover Flange with Ground Wire, 4.36 x 3.2 Inch
Hubbell Premise Wiring

Hubbell Premise Wiring S5017GR Brass Rectangular 1-Gang Cover Flange with Ground Wire, 4.36 x 3.2 Inch

  • MPN: S5017GR
  • UPC: 783585696188
  • PPN: HBL-S5017GR
  • UNSPSC: 39121307

CAD

$93.55

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Flush Concrete Floorboxes Series, 1-Gang Cover Flange With Ground Wire, Rectangular, Brass

Features

  • Single gang
  • Flush brass rectangular floorbox cover frame
  • Includes (1) 6" solid #12 AWG conductor grounding pigtail
  • Ships with mounting screws
  • Brass Cover Flange with Ground Wire

Specifications

Key Specifications

Dimensions
4.36 in x 3.2 in x 0.3 in
HeightMetric
7.6 mm
Length Metric
110.7 mm
SAP Material Group 3
001
Color
Natural
Length
4.36 in
Size
4.36 in x 3.2 in x 0.3 in
Standard
cULus Listed to UL514
Width
3.2 in
Mounting Type
Field Installed
Image Actual Or Representative
A
Material
Brass
Series
Floor Boxes
BOX SIZE
7.500x15.700x5.700 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
00783585696188
NAICS Code
3359326106
Dimensions Metric110.7 mm x 81.3 mm x 7.6 mm
Industry Standard(s)cULus Listed to UL514
Mounting MethodScrew Mount Device Mounting Plates
ApplicationFor Use with Metallic and Nonmetallic Rectangular Flush Floorboxes
Height0.3 in
MountingField Installed
Special FeaturesBrass Cover Flange with Ground Wire
TypeIn Floor
WidthMetric81.3 mm
StyleFlanged
ConstructionFabricated
Number of Gang(s)1-Gang
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.150 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
