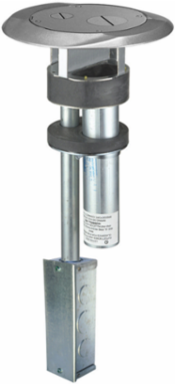

Hubbell Premise Wiring S1PTFFGYJ Fire-Rated Poke-Through with Junction Box, 3/4 Inch Power & 1-1/2 Inch Data
- MPN: S1PTFFGYJ
- UPC: 783585373188
- PPN: HBL-S1PTFFGYJ
- UNSPSC: 39121328
CAD
$811.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SystemOne, Fire-Rated Poke-Through, One-Piece, Furniture Feed, with Gray Painted Cover and Junction Box
Features
- Multi-Service Furniture Feed FRPT
- Up to 4 Hour Fire Rating
- (1) 3/4"Threaded Hub for Power and (1) 1½" Threaded Hub for Data
- Aluminum Cover and Flange with Gray Powder Paint Finish
- S1FRPTJB Junction Box Included
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 9.900 in
- Performance
- Electrical - Fire Resistance Rating - 4-Hrs. (D900);Mechanical - Max. Cu Cross Section - 3/4 in. Power EMT .072 sq. in.
- Finish
- Gray
- Number of Outlet
- (1) 3/4" & (1) 1½" Threaded Hub Multi-Service
- Cover Type
- Furniture Feed
- Number Of Outlets
- (1) 3/4" & (1) 1½" Threaded Hub Multi-Service
- Description - Invoice
- S1 FRPT, FURN FEED, 1-PC, GY W/JBOX
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- Construction
- Fabricated
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585373188
- Lowest Level UOM
- Each
Core Hole4 Inch SystemOne
Industry Standard(s)cULus Listed;Meets ADA Standards;UL 514A Listed
Cable EntryThreaded Hubs
KnockoutsIn Junction Box: Top- 1) 1", Bottom- 1) 3/4", Sides- 2) 1/2" and 1 3/4"
StandardcULus Listed;Meets ADA Standards;UL 514A Listed
Finish TypeGray
StyleFRPT Kits
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareStep-Down Installation
MaterialComposite
BOX SIZE(in)
Each - Pack DescriptionEach
NAICS Code3359326106
