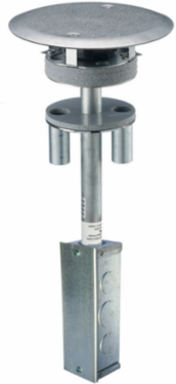

Hubbell Premise Wiring S1PT4X4FITJ Fire-Rated Poke-Through 4 Inch with (1) 3/4 Inch EMT for Power, Junction Box
- MPN: S1PT4X4FITJ
- UPC: 783585373003
- PPN: HBL-S1PT4X4FITJ
- UNSPSC: 39121328
CAD
$617.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
In-Floor Delivery Systems, SystemOne, Fire-Rated Poke-Through, 4" Fitting Only, (1) 3/4" EMT for Power, (2) 3/4" EMTs for Low Voltage, with Junction Box
Features
- 4" Fire-Rated Poke-Through
- For use with Universal Flange/Cover Assemblies and Subplates
- (1) 3/4" EMT for Power
- (2) 3/4" EMT Stems for Low Voltage

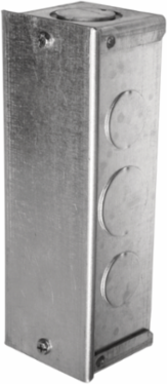

- Includes Junction Box
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Core Hole | 4 Inch |
| Industry Standard(s) | cULus Listed |
| Knockouts | In Junction Box: Top: (1) 1", Bottom: (1) 3/4", Sides: (2) 1/2" and (1) 3/4" |
| Standard | cULus Listed |
| Style | FRPT Fittings |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Step-Down Installation |
| BOX SIZE | 9.300x24.300x9.200 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585373003 |
| Case Weight | 12.525 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 46.500 in |
| Pallet Weight | 216.000 lb. |
| NAICS Code | 3359326106 |
| Application - For Use On | Carpet/Tile |
|---|---|
| Width | 9.300 in |
| Plate Style | Data/Power |
| Number of Outlet | (4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings |
| Number Of Outlets | (4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings |
| Description - Invoice | FRPT, 4X4 THRU-FLR, SYSTEM 1 W/ JBOX |
| Harmonization Code | 7326908688 |
| MSDS Flag | No |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 12.525 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585373002 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
