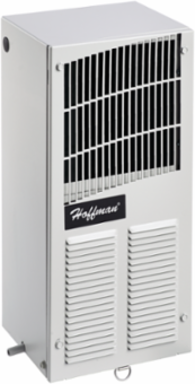

Nvent Hoffman T150126G100 T-Series Compact Outdoor without Heat T15, 800BTU 230V, Lt Gray, Steel
Nvent Hoffman T150126G100 T-Series Compact Outdoor without Heat T15, 800BTU 230V, Lt Gray, Steel
- MPN: T150126G100
- UPC: 783510163921
- PPN: HOF-T150126G100
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4636.15/ EA
Description
T-Series Compact Outdoor Acs have small footprint and designed to blend into surroundings. This T-Series Compact Outdoor without Heat T15, T150126G100 item is rated 800BTU 230V with a material of Steel colored Lt Gray.
Features
- Compact footprint to minimize real estate and maximize capacity
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
- Mounting hardware, gaskets and user manual furnished with the unit
- Item T150116G120 is only for indoor purpose
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 264
- Number of Phases
- 1
- Finish
- Powder Coated
- Width (W)
- 191
- Max Current
- 1.5
- Protection Rating
- NEMA Type 4
- Color Code
- RAL 7035
- NEMA Rating
- 4 Watertight
- Sub Brand
- T-Series
- BTU Rating
- 900
- Frequency Rating
- 50/60 Hz
- Operating Temperature
- 131 Deg F @ 60 Hz
Nominal Capacity Btu/h900
Nominal Voltage230
MaterialMild Steel
Height (H)400
Depth (D)160
Remote Access ControlNo
Product FamilyT-Series
Thickness (T)1.21
Weight28.3
Voltage Rating220/230 V
Amperage Rating1.4/1.5 Amp
Phase1 Ph
ColorLtGray
