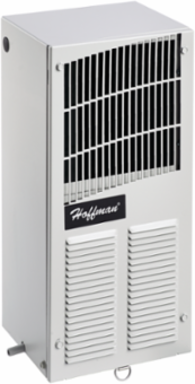

nVent Hoffman T150116G150 T-Series Compact Outdoor with Heat T15, 800BTU 115V, Lt Gray, Steel
- MPN: T150116G150
- UPC: 783510222437
- PPN: HOF-T150116G150
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
T-Series Compact Outdoor Acs have small footprint and designed to blend into surroundings. This T-Series Compact Outdoor with Heat T15, T150116G150 item is rated 800BTU 115V with a material of Steel colored Lt Gray.
Features
- Compact footprint to minimize real estate and maximize capacity
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
- Mounting hardware, gaskets and user manual furnished with the unit
- Item T150116G120 is only for indoor purpose
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Watts | 235 |
| Number of Phases | 1 |
| Finish | Powder Coated |
| Width (W) | 191 |
| Operating Temperature | -40 |
| Remote Access Control | No |
| Product Family | T-Series |
| Thickness (T) | 1.21 |
| Weight | 29.8 |
| Voltage Rating | 100 - 120 VAC |
| Amperage Rating | 3.8/3.6 Amp |
| Color | Gray |
| Nominal Capacity Btu/h | 800 |
|---|---|
| Nominal Voltage | 115 |
| Material | Mild Steel |
| Height (H) | 400 |
| Depth (D) | 160 |
| Max Current | 3.5 |
| Protection Rating | NEMA Type 4 |
| Color Code | RAL 7035 |
| NEMA Rating | 4 Watertight |
| Sub Brand | T-Series |
| BTU Rating | 800 |
| Frequency Rating | 50/60 Hz |
