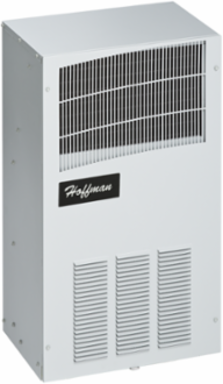

nVent Hoffman T290446G403 T-Series Mid-Size Outdoor with Heat T29, 4000BTU 460V, Brushed, SS304
- MPN: T290446G403
- UPC: 783510211332
- PPN: HOF-T290446G403
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
T-Series Mid-Size ACs cool a range of heat loads and designed to blend into surroundings. This T-Series Mid-Size Outdoor with Heat T29, T290446G403 item is rated 4000BTU 460V with a material of SS304 finish Brushed.
Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R134A or R-407C refrigerant
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Exterior and fully recessed mounting options on many models
- Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 432
- Nominal Voltage
- 230
- Number of Phases
- 1
- Nominal Capacity Watts
- 1,172
- Protection Rating
- NEMA Type 4X
- Material
- Stainless Steel 304
- Thickness (T)
- 1.21
- Weight
- 120
- Model
- T29
- BTU Rating
- 4,000
- Power
- 1172 W
- Operating Temperature
- 131 deg F
Height (H)737
Depth (D)287
Remote Access ControlNo
Nominal Capacity Btu/h4,000
Max Current3.8
Product FamilyT-Series
FinishBrushed #3
NEMA Rating4X Watertight, corrosion-resistant
Sub BrandT-Series
Voltage Rating200-575 VAC Multitap
Amperage Rating3.8 A
Housing MaterialStainless Steel
ColorLt Gray
