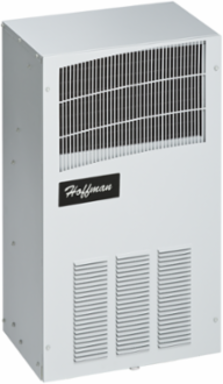

nVent Hoffman T290416G156 T-Series Mid-Size Outdoor with Heat T29, 4000BTU 115V, Brushed, SS304
- MPN: T290416G156
- UPC: 783510232962
- PPN: HOF-T290416G156
- UNSPSC: 40101701
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
T-Series Mid-Size ACs cool a range of heat loads and designed to blend into surroundings. This T-Series Mid-Size Outdoor with Heat T29, T290416G156 item is rated 4000BTU 115V with a material of SS304 finish Brushed.
Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R134A or R-407C refrigerant
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Exterior and fully recessed mounting options on many models
- Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Product Family | T-Series |
| Width (W) | 432 |
| Nominal Voltage | 115 |
| Number of Phases | 1 |
| Nominal Capacity Watts | 1,172 |
| Material | Stainless Steel 304 |
| Thickness (T) | 1.21 |
| Weight | 114 |
| Model | T29 |
| Protection Rating | NEMA Type 4X |
|---|---|
| Height (H) | 737 |
| Depth (D) | 287 |
| Remote Access Control | No |
| Nominal Capacity Btu/h | 4,000 |
| Operating Temperature | -40 |
| Finish | Brushed #3 |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Sub Brand | T-Series |
| Color | Gray |
