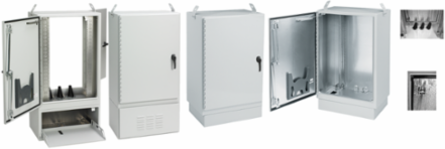

nVent Hoffman T303020FTTX FTTX Fiber Optic Cabinet Package Type 4X Single, 30x30x20, Lt Gray, AL
nVent Hoffman T303020FTTX FTTX Fiber Optic Cabinet Package Type 4X Single, 30x30x20, Lt Gray, AL
- MPN: T303020FTTX
- UPC: 783510169213
- PPN: HOF-T303020FTTX
- UNSPSC: 43223306
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4470.31/ EA
Description
FTTX Fiber Optic Cabinets protect and manage fiber optic cable equipment in outdoor applications. This FTTX Fiber Optic Cabinet Package Type 4X Single, T303020FTTX item measures 30x30x20mm with a material of AL colored Lt Gray.
Features
- Standard pitched roof promotes water runoff
- Available with either single- or dual-access doors on front and rear for convenient access
- Available with or without battery compartment
- 3-point latching mechanisms and padlocking handles on doors provide security
- Seamless foam-in-place gasket seals doors against moisture and dust
- Wind latch mechanisms on doors control door when open for equipment maintenance
- Removable lifting lugs (2) for easy installation
- Rack angles adjustable for 19- or 23-inch spacing without modifications
- Use cage nuts to mount equipment
- Cabinet top insulation helps prevent the formation of condensation and reduce solar gain inside cabinet. Cabinet side insulation is optional
- Base of cabinet has a 5.00-inch (127-mm) high aluminum mounting plinth to allow for cable alignment
- Three pyramidal boots provided at base of cabinet for sealing various sizes of cables
- All fasteners are stainless steel to maintain professional appearance in severe outdoor climate conditions
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 762
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Rack Units
- 10
- Weight
- 115
- Width
- 30 in
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)762
Depth (D)508
MaterialAluminum
ColorLight Gray
Thickness (T)3
IP RatingIP66
Height30 in
Depth20 in
