Nvent Hoffman T503020FTTX FTTX Fiber Optic Cabinet, 50 x 30 x 20 Inch, Aluminum, NEMA 4X
Nvent Hoffman T503020FTTX FTTX Fiber Optic Cabinet, 50 x 30 x 20 Inch, Aluminum, NEMA 4X
- MPN: T503020FTTX
- UPC: 783510169183
- PPN: HOF-T503020FTTX
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

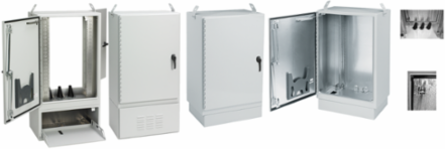

FTTX Fiber Optic Cabinets protect and manage fiber optic cable equipment in outdoor applications. This FTTX Fiber Optic Cabinet Package Type 4X Single, T503020FTTX item measures 50x30x20mm with a material of AL colored Lt Gray.
Features
- Standard pitched roof promotes water runoff
- Available with either single- or dual-access doors on front and rear for convenient access
- Available with or without battery compartment
- 3-point latching mechanisms and padlocking handles on doors provide security
- Seamless foam-in-place gasket seals doors against moisture and dust
- Wind latch mechanisms on doors control door when open for equipment maintenance
- Removable lifting lugs (2) for easy installation
- Rack angles adjustable for 19- or 23-inch spacing without modifications
- Use cage nuts to mount equipment
- Cabinet top insulation helps prevent the formation of condensation and reduce solar gain inside cabinet. Cabinet side insulation is optional
- Base of cabinet has a 5.00-inch (127-mm) high aluminum mounting plinth to allow for cable alignment
- Three pyramidal boots provided at base of cabinet for sealing various sizes of cables
- All fasteners are stainless steel to maintain professional appearance in severe outdoor climate conditions
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 762
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Rack Units
- 22
- Weight
- 134
- Width
- 30 in
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)1,270
Depth (D)508
MaterialAluminum
ColorLight Gray
Thickness (T)3
IP RatingIP66
Height50 in
Depth20 in
