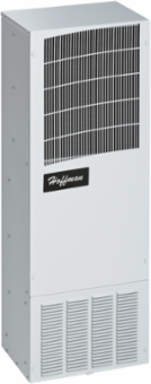

nVent Hoffman T431016G100 T-Series Mid-Size Outdoor without Heat T43, 10000BTU 115V, Lt Gray, Steel
- MPN: T431016G100
- UPC: 783510233532
- PPN: HOF-T431016G100
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
T-Series Mid-Size ACs cool a range of heat loads and designed to blend into surroundings. This T-Series Mid-Size Outdoor without Heat T43, T431016G100 item is rated 10000BTU 115V with a material of Steel colored Lt Gray.
Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R134A or R-407C refrigerant
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Exterior and fully recessed mounting options on many models
- Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 400 |
| Nominal Voltage | 115 |
| Number of Phases | 1 |
| Nominal Capacity Watts | 3,224 |
| Max Current | 21 |
| Product Family | T-Series |
| Finish | Powder Coated |
| Thickness (T) | 1.21 |
| Weight | 125 |
| Model | T43 |
| BTU Rating | 11,000 |
| Power | 1774/2350 |
| Color | Gray |
| Height (H) | 1,092 |
|---|---|
| Depth (D) | 277 |
| Remote Access Control | No |
| Nominal Capacity Btu/h | 11,000 |
| Operating Temperature | -40 |
| Protection Rating | NEMA Type 4 |
| Material | Mild Steel |
| Color Code | RAL 7035 |
| NEMA Rating | 4 Watertight |
| Sub Brand | T-Series |
| Voltage Rating | 115 |
| Amperage Rating | 16.2/21.0 A |
| Frequency Rating | 50/60 Hz |
