Schmersal 101154990 Safety Switch T4C 235, Metal Enclosure, IP67, 2 Safety Contacts, 30mm x 88.5mm x 30mm
- MPN: 101154990
- PPN: SCM-101154990
CAD
$200.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Switch T4C 235, Metal Enclosure, IP67, 2 Safety Contacts, 30mm x 88.5mm x 30mm
Features
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Good resistance to oil and petroleum spirit
- 30 mm x 88,5 mm x 30 mm
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- Utilisation category DC-13
- 1 A
- Switching principle
- Slow action
- Material of the contacts, electrical
- Silver
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC

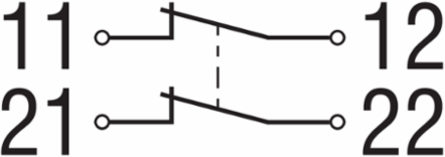

Switching elementOpener (NC)
Switching frequency5,000 /h

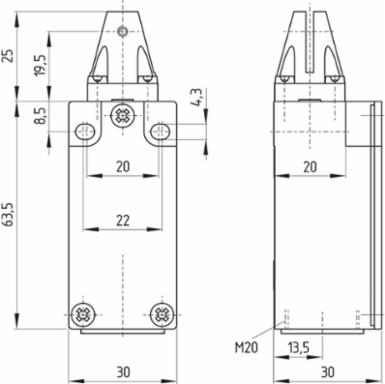

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 161 mm
Width of sensor30 mm

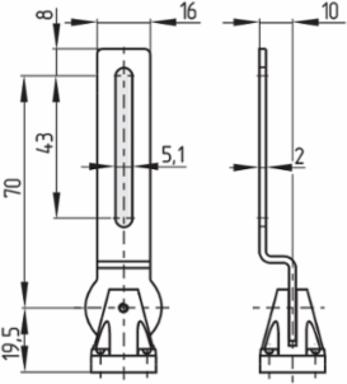

Height of the actuator78 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Number of safety contacts
- 2
General data
- Enclosure material
- Metal, zinc die-cast
- Material of the actuator
- Stainless steel
Enclosure coating materialpainted
Gross weight180 g
Safety classification
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-30 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Actuating element
- Swivel lever

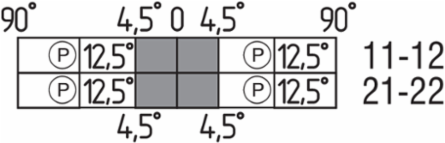

- Positive break angle
- 12.5 °
- Opening angle
- 2 x 90°
Mechanical life, minimum1,000,000 Operations
Positive break torque0.2 Nm
Approvals - Standards
- Certificates
- cULus | CCC
