Schmersal 101213945 TR 235 ST-AS Safety Switch, 30 mm x 106 mm, Metal Enclosure, IP67
- MPN: 101213945
- PPN: SCM-101213945
CAD
$464.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

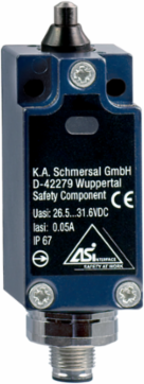

TR 235 ST-AS Safety Switch, 30 mm x 106 mm, Metal Enclosure, IP67
Features
- AS-Interface M12 connector
- Metal enclosure
- Wide range of alternative actuators
- Good resistance to oil and petroleum spirit
- 30 mm x 63,5 mm x 30 mm
- Actuator heads can be repositioned by 4 x 90°
- Mounting details to EN 50047
- AS-Interface LED and status display
- Integrated AS-Interface
- Suitable for AS-i Power24
Documentation & Downloads
Specifications
Electrical data
- Current consumption
- 50 mA
- Switching principle
- Slow action
Switching elementOpener (NC)
Switching frequency5,000 /h
Electrical data - AS-Interface specification
- AS-i Version
- V 3.0
- AS-i Input, Channel 1
- Data bits DI 0 / DI 1 = dynamic code transmission
- AS-i Outputs, DO 0 … DO 3
- No Function
- AS-i Parameter bits, P1 ... P3
- No function
- Note (AS-i Input module address)
- Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
AS-i ProfileS-0.B.F.F
AS-i Input, Channel 2Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Parameter bits, P0Channel 2 switched
AS-i Input module address0

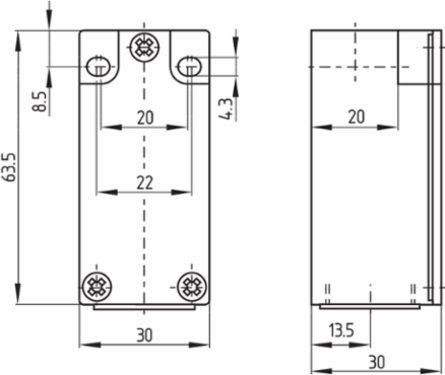

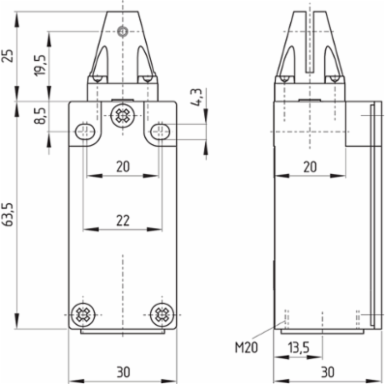

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 106 mm
Width of sensor30 mm

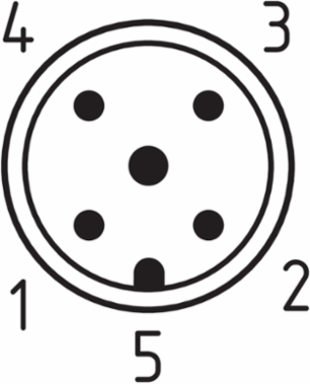

Pin assignment
- PIN 1
- AS-Interface +
- PIN 3
- AS-Interface -
- PIN 5
- Functional earth connection
PIN 2n.c.
PIN 4n.c.
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
Rated impulse withstand voltage U0.8 kV
General data - Features
- Safety functions
- Yes
- Number of auxiliary contacts
- 0
Integral system diagnostics, statusYes
Number of safety contacts2
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508
- Actuator type to EN 50047
- c
- Enclosure coating material
- painted
Housing construction formNorm construction design
Enclosure materialMetal, zinc die-cast
Gross weight195 g
Safety classification
- Standards
- EN IEC 61508
- Category
- 1
- Note (PFH-value)
- up to max. 100,000 switching cycles/year
- Mission time
- 20 Year(s)
- Performance Level, up to
- d
- PFH value
- 1.01 x 10⁻⁷ /h
Performance Level, up toc
PFH value1.14 x 10⁻⁶ /h
Safety Integrity Level (SIL), suitable for applications in1
Please note:Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist.
Category3
Safety Integrity Level (SIL), suitable for applications in2
Electrical data - AS Interface
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 30 %
- Note (Relative humidity)
- non-condensing | non-icing
- Restistance to shock
- 30 g / 11 ms
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm / 5 g
Mechanical data - Connection technique
- Termination
- Connector plug M12, 5-pole, can be rotated
Material of the connector (electrical)Metal film
Mechanical data

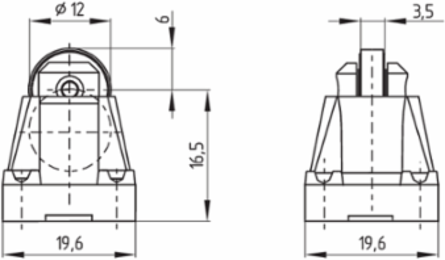

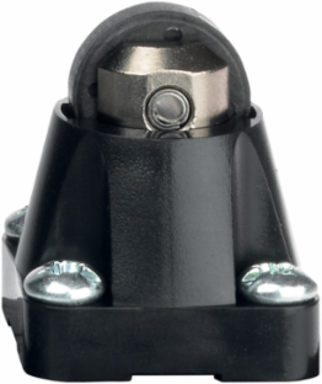

- Actuating element
- Roller plunger
- Actuating force, minimum
- 9 N
- Actuating speed, maximum
- 1 m/s
Mechanical life, minimum1,000,000 Operations
Positive break force, minimum19 N
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
Status indication
- Note (LED switching conditions display)
- (1) LED yellow: Channel 1 / AS-i SaW Bit 0.1 | (2) LED green-red (AS-i Duo LED):Supply voltage / Communication error / Slave address = 0 | (3) LED yellow: Channel 2 / AS-i SaW Bit 2.3
