Leviton

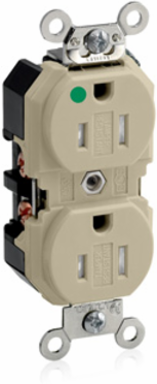

Leviton 8200-SGI 15 Amp Duplex Receptacle Outlet, Hospital Grade, Tamper-Resistant, Ivory

15 Amp Duplex Receptacle Outlet, Hospital Grade, Tamper-Resistant, Ivory
  • MPN: 8200-SGI
  • UPC: 078477029947
  • PPN: LEV-8200-SGI

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$47.00/ EA

Description

Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Ivory

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-1 & WD-6
RoHS
Compliant
UL498HG
File E13399
CSA C22.2 No. 42File 152105
NOM057
UL Fed Spec WC-596File E13399
Warranty10-Year Limited

Material Specifications

Body Material
Nylon
Color
Ivory
Ground Clips
Nickel-Plated Brass
Line Contacts
Nickel Plated Phosphor Bronze
Strap Material
Nickel Plated Steel
Clamp NutsZinc-Plated Steel
Face MaterialNylon
Grounding ScrewPlated Steel
Shutter MechanismDelrin® Acetal
Terminal ScrewsPlated Brass

Mechanical Specifications

Product ID
Markings are permanently marked on device
Terminal Accom.
14-10 AWG
Termination
Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Torque Range14-16 inch pounds

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Device Type
Duplex Receptacle Outlet
Grade
Extra Heavy-Duty Hospital Grade
FeatureTamper-Resistant|Smooth Face

Environmental Specifications

Flammability
Rated V-2 per UL 94
Operating Temperature-40°C to 60°C

Electrical Specifications

Amperage
15 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Voltage
125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3

AC Horsepower Ratings

Horsepower Rating
1/2 HP

Downloads
