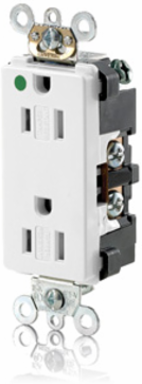

Leviton 16262-SGW Decora Plus 15 Amp Duplex Receptacle, Hospital Grade, Tamper-Resistant
Leviton 16262-SGW Decora Plus 15 Amp Duplex Receptacle, Hospital Grade, Tamper-Resistant
- MPN: 16262-SGW
- UPC: 078477772461
- PPN: LEV-16262-SGW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$53.55/ EA
Description
Decora Plus Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498HG
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Color
- White
- Ground Clips
- Brass-Plated
- Line Contacts
- Brass Triple-Wipe 0.040” Thick
- Terminal Screws
- Brass 10-32
Clamp NutsZinc-Plated Steel
Face MaterialNylon
Grounding ScrewBrass 8-32
Strap MaterialSteel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Decora Plus
- Feature
- Tamper-Resistant|Smooth Face
Device TypeDuplex Receptacle Outlet
GradeExtra Heavy-Duty Hospital Grade
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
