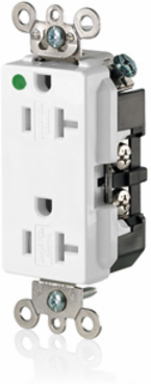

Leviton 16362-SGW 20 Amp Decora Plus Hospital Grade Duplex Receptacle, Self-Grounding, NEMA 5-20R, White
- MPN: 16362-SGW
- UPC: 078477942222
- PPN: LEV-16362-SGW
CAD
$58.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| RoHS | Compliant |
| UL498HG | File E13399 |
| CSA C22.2 No. 42 | File E152105 |
|---|---|
| NOM | 057 |
| UL Fed Spec WC-596 | File E13399 |
| Warranty | 10-Year Limited |
Material Specifications
| Base Material | Nylon |
|---|---|
| Color | White |
| Ground Clips | Nickel-Plated Brass |
| Line Contacts | Brass Triple-Wipe 0.040” Thick |
| Strap Material | Nickel-Plated Brass |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Cover Material | Nylon |
| Grounding Screw | Nickel-Plated Brass |
| Mounting Screws | Triple Combination Head, Steel |
| Terminal Screws | Nickel-Plated Brass |
Mechanical Specifications
| Product ID | Markings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 14-16 inch pounds |
Product Features
| Brand | Decora Plus |
|---|---|
| Feature | Tamper-Resistant|Smooth Face |
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Grade | Extra Heavy-Duty Hospital Grade |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Maximum Working Voltage | 125V as rated |
| Temperature Rise | Max 30C at 250 cycles OL at 200 pct rated current |
| Wire | 3 |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Self-Grounding |
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| Horsepower Rating | 1 HP |
|---|
