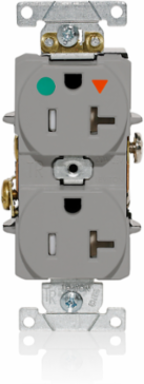

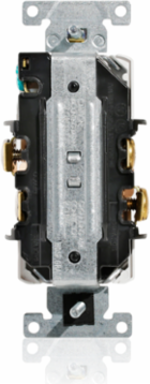

Leviton T8300-IGG Heavy-Duty Hospital Grade Tamper-Resistant Duplex Receptacle 20 Amp 125 Volt Gray
Leviton T8300-IGG Heavy-Duty Hospital Grade Tamper-Resistant Duplex Receptacle 20 Amp 125 Volt Gray
- MPN: T8300-IGG
- UPC: 078477896723
- PPN: LEV-T8300-IGG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$40.11/ EA
Description
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray
Specifications
Material Specifications
- Body Material
- PBT Polyester Blend
- Device Type
- Duplex Receptacle Outlet
- Grade
- Heavy-Duty Hospital Grade
- Ground Contacts
- 0.030" Brass
- Line Contacts
- 0.030" Phosphor Bronze
- Shutter Mechanism
- Acetal
- Terminal Clamps
- Brass
Color / FeatureGray
Face MaterialPBT Polyester Blend
Ground ClipsBrass
Grounding Screw#8 Hex Head, Triple-Drive Brass
Mounting ScrewsTriple-Drive Plated Steel
Strap MaterialSteel (Galvanized G60)
Terminal Screws#8 Triple-Drive Brass
Mechanical Specifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
- RoHS
- RoHS Compliant
- Terminal Accom.
- #14 AWG - #10 AWG
- Termination
- Back and Side Wire
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Product IDRatings are permanently marked on device
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass - Hot, Silver - Neutral, Green - Ground,
Wire TypeStranded or Solid
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
AC Horsepower Rating
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 75°C
Horsepower Rating1 HP
Product Features
- Color
- Gray
Warranty
- Horsepower Rating
- 1 HP
Warranty10-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass - Hot, Silver - Neutral, Green - Ground,
- Wire Type
- Stranded or Solid
Operating Temperature-40°C to 75°C
Terminal Accom.#14 AWG - #10 AWG
TerminationBack and Side Wire
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 3000 V minimum
- Ground Clips
- Brass
- Grounding
- Self-Grounding
- Line Contacts
- 0.030" Phosphor Bronze
- Pole
- 2
- Strap Material
- Steel (Galvanized G60)
- Terminal Clamps
- Brass
- Voltage
- 125 VAC
Body MaterialPBT Polyester Blend
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Grounding Screw#8 Hex Head, Triple-Drive Brass
Mounting ScrewsTriple-Drive Plated Steel
Shutter MechanismAcetal
Temperature RiseMax 30 °C temperature rise at full rated current
Terminal Screws#8 Triple-Drive Brass
Wire3
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
