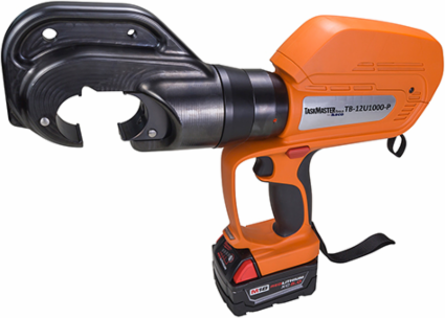

ILSCO TB-12U1000-P Taskmaster 12 Ton Battery Hydraulic Pistol Grip Crimping Tool
- MPN: TB-12U1000-P
- UPC: 783669014976
- PPN: ILC-TB-12U1000-P
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Taskmaster 12 Ton Battery Hydraulic Pistol Grip Crimping Tool
Documentation & Downloads
Specifications
Key Specifications
- Height
- 4.75 in | 116.375 mm
- Weight
- 23.19 lbs
Length22.5 in | 551.25 mm
Width17.5 in | 428.75 mm
Voltage
- Voltage Rating
- 75 kV
Dimensions
- Height BX (IN)
- 7
- Jaw Opening (IN)
- 1.65
- Length (mm)
- 551.25
- Width BX (IN)
- 19
Height (mm)116.375
Jaw Opening (mm)41.91
Weight BX (LB)15.2
Width (mm)428.75
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Additional Class Attributes
- Body Type
- Pistol Grip
- Crimp Style
- Die taking
- For Use With (CU)
- CLN4, CLN9, CLND, CLWU, CLNF, CLNN, CLNS, CLNU, CLWD, CLW3, CLW9, CLWN, CLWS, CSND, CSNF, CSNS, CSLT, CSWD, CSWN, CSWS, CSW4, CSW9, CT, CTL, GGA, GGB, ELT, GGC, ULT, RLT
- Handle Type
- Cushion grip
- Inserts Exchangeable
- Yes
- Max Lug Size CU
- 1000 kcmil CU
- Storage Specification
- Non-humid environment
- Warranty
- 5 Year
Compression shapeDie taking
For Use With (AL)ALNS, ALND, ALNN, IACL, 2IACL, 2ACL, 2ACN, ACL, CAN, ASN, AS, CPM, CPML, ACO-90, ACM, ACO, AH 1-4, HT
FunctionCrimp
IncludesTool, (2) batteries, (1) battery charger, Shoulder strap, Durable carrying bag, Clear Plastic Die Case (2), Instruction manual
Max Lug Size AL750 kcmil AL
Number of included inserts0
Type of AccessoryU-type Dies
With automatic returnYes
Material and Finish
- Handle Insulation
- Yes
- Jaw Material
- Steel
Handle MaterialPlastic
MaterialSteel, Plastic
Additional Technical Specifications
- Crimping Capacity
- 8 AWG - 1000 kcmil CU, 8 AWG - 750 kcmil AL
- Force
- 12 tons
Energized Line TestedNo
Power SourceBattery-powered Hydraulic
General
- Bag Quantity
- 1
- NEMA Code
- S-575-2
Carton Quantity DescriptionSTD PACK QTY 1
UPC Code78366901497
Color
- Handle Color
- Black, Orange
