Schneider Electric GS1AP43 Terminal Shroud, 3-Pole for Switches 160-400A, Green Premium Compliant
- MPN: GS1AP43
- PPN: SCH-GS1AP43
CAD
$120.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

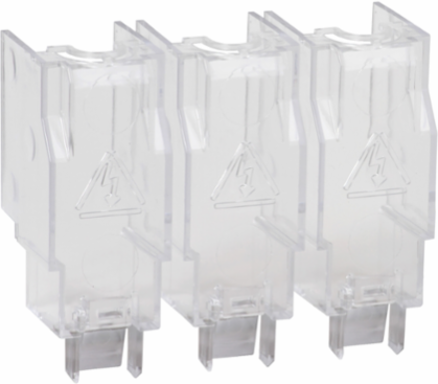

TeSys GS accessory, protection terminal shroud for 3-pole 200-400A IEC fuse switch-disconnectors GS1M, GS1N, GS1P, GS1Q, GS2M, GS2N, GS2P, GS2Q and 200A UL GS2MU. Made with a semi-transparent isolating material, the shroud protects against direct contact on terminals by providing a front face IP20 protection level. It can be used for upstream or downstream protection (2 pieces are necessary for full protection).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Complementary Attributes
- Line Rated Current
- 160 A, 200 A, 250 A, 315 A, 400 A
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Exclusion Rationale
- Product/component not in scope – not electric/electronic device
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- GS1AP
- Number Of Poles
- 3P
- Product Or Component Type
- terminal shroud
- Returnability
- Yes
- Certificate Agency
- IEC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Local Publishable Date2026-04-12
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1911
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Compatibility Codeterminal shrouds
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
Sustainable PackagingNo
Accessory / Separate Part Categoryprotection accessory
Package Weight(Lbs)161.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- terminal shroud
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
