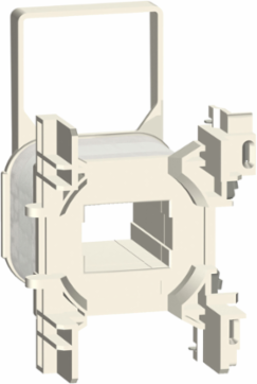

Schneider Electric LXD3V7 Contactor coil, TeSys Deca, LXD3, 400V AC 50/60Hz for 40…65A contactor

Contactor coil, TeSys Deca, LXD3, 400V AC 50/60Hz for 40…65A contactor
  • MPN: LXD3V7
  • PPN: SCH-LXD3V7

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$190.51/ EA

Description

Contactor coil, TeSys Deca, LXD3, 400V AC 50/60Hz for 40…65A contactor

Specifications

Environment

Ambient Air Temperature For Operation
-5-60 °C
Net Weight0.07 kg

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Pvc Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Control Circuit Voltage Limits
drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Coil Technology
without built-in suppressor module
Heat Dissipation
4-5 W 50/60 Hz
Inrush Power In Va160-160 VA 60 Hz cos phi 0.75 (at 20 °C) || 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-In Power Consumption In Va15-15 VA 60 Hz cos phi 0.3 (at 20 °C) || 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)

Specifications

Average Resistance
607 Ohm 20 °C
Control Circuit Type
AC 50/60 Hz
Range
TeSys
Maximum Operating Rate
3600 cyc/h 60 °C
Product Compatibility
LC1DT60A || LC1DT80A || LC1D40A...D65A
[Uc] Control Circuit Voltage400 V AC 50/60 Hz
Product Or Component Typecontactor coil
Inductance Of Closed Circuit33.1 H
Mechanical Durability6 Mcycles
Device Short NameLXD3
