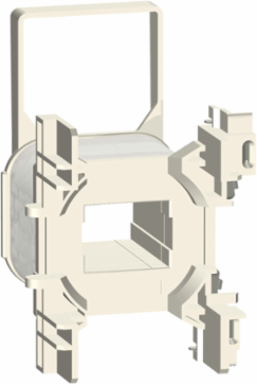

Schneider Electric LXD3E7 TeSys Deca Contactor Coil 48V AC 50/60Hz for 40-65A Contactor
- MPN: LXD3E7
- PPN: SCH-LXD3E7
CAD
$190.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys D replacement coil 48V AC 50/60Hz, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D40A to D65A and LC1 DT60A, DT80A. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Average Resistance
- 7.97 Ohm 20 °C
- Control Circuit Type
- AC 50/60 Hz
- Range
- TeSys
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Product Compatibility
- LC1DT60A || LC1D40A...D65A || LC1DT80A
[Uc] Control Circuit Voltage48 V AC 50/60 Hz
Product Or Component Typecontactor coil
Inductance Of Closed Circuit0.48 H
Mechanical Durability6 Mcycles
Device Short NameLXD3
Complementary
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 4-5 W 50/60 Hz
Inrush Power In Va160-160 VA 60 Hz cos phi 0.75 (at 20 °C) || 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-In Power Consumption In Va15-15 VA 60 Hz cos phi 0.3 (at 20 °C) || 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
Net Weight0.07 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
