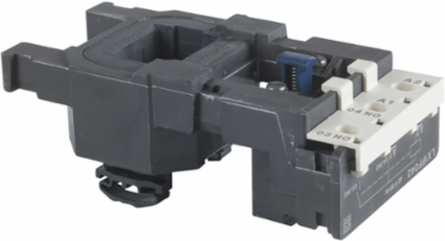

Schneider Electric LX1FF040 TeSys F Contactor Coil, 48V AC 60Hz, 2400 Cycles/Hour, 0.43 kg
- MPN: LX1FF040
- PPN: SCH-LX1FF040
CAD
$525.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys F AC coil 48V 60Hz (voltage code E6), for TeSys F 3-pole and 4-pole contactors LC1 F115, F150. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Average Resistance
- 0.78 Ohm 20 °C
- Control Circuit Type
- AC 60 Hz
- Product Or Component Type
- contactor coil
- Inductance Of Closed Circuit
- 0.11 H
- Operating Time
- 23...35 ms closing || 5...15 ms opening
- Device Short Name
- LX1FF
[Uc] Control Circuit Voltage48 V AC 60 Hz
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Maximum Operating Rate2400 cyc/h 55 °C
Product CompatibilityLC1F150 || LC1F115
Mechanical Durability10 Mcycles
Complementary
- Control Circuit Voltage Limits
- drop-out 0.35...0.55 Uc 50/60 Hz 55 °C) || operational 0.85...1.1 Uc 50/60 Hz 55 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 12-16 W 60 Hz
Inrush Power In Va660-660 VA 60 Hz cos phi 0.3 (at 20 °C)
Hold-In Power Consumption In Va55-55 VA 60 Hz cos phi 0.3 (at 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
Net Weight0.43 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1505009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
