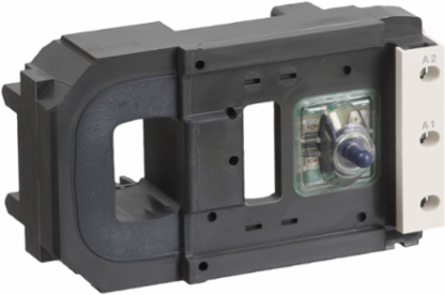

Schneider Electric LX1FJ200 TeSys F - contactor coil - LX1FJ - 200...208 V AC 40...400 Hz
- MPN: LX1FJ200
- PPN: SCH-LX1FJ200
CAD
$1644.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys F AC coil 200/208V 40-400Hz (voltage code L7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F400. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Complementary Attributes
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C), drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
- Maximum Operating Rate
- 2400 cyc/h 55 °C
Control Circuit TypeAC 40...400 Hz
Uc Control Circuit Voltage200...208 V AC 40...400 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Average Resistance
- 30 Ohm inrush 20 °C, 815 Ohm holding 20 °C
- Carbon Footprint Of The Distribution Phase A4
- 0.049774529084509175, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0003999825873412172, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 69 kg CO2 eq., 68.82266544572599
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1505009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LX1FJ
- Heat Dissipation
- 14-14 W 40...400 Hz
- Inductance Of Closed Circuit
- 4.1 H
- Mechanical Durability
- 10 Mcycles
- Product Or Component Type
- contactor coil
- Range Of Product
- TeSys F
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 70 kg CO2 eq.
- Pep Code
- ENVPEP1505009EN
- Pep Verification Date
- 2025-07-19
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential, In %
- 95
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Operating Time100...170 ms opening, 40...75 ms closing
Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.28693227533080673
Carbon Footprint Of The Manufacturing Phase A1 To A30.9 kg CO2 eq., 0.9122731131826548
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Coil Technologywithout built-in suppressor module
Energy Efficiency OptimizedFalse
Hold In Power Consumption In Va15-15 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Inrush Power In Va1075-1075 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Sustainable PackagingNo
Warranty In Months18
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh78.84
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1505009EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-07-19
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint70.0720453459113
Environmental DisclosureENVPEP1505009EN
Packaging Made With Recycled CardboardYes
Product CompatibilityLC1F400
Pep CodeENVPEP1505009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
