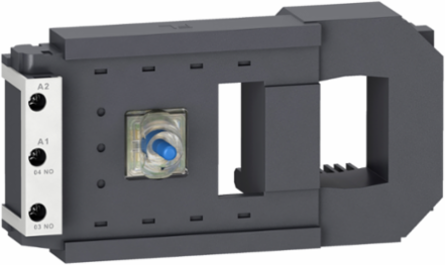

Schneider Electric LX1FL220 TeSys F Contactor Coil 220-240V AC, 40-400Hz, 1200 Cycles/Hour, 1.5 kg
- MPN: LX1FL220
- PPN: SCH-LX1FL220
CAD
$1972.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys F AC coil 220/230/240V 40-400Hz (voltage code M7/P7/U7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F630, LC1F1250. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 1200 cycles/hour.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Complementary Attributes
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C), drop-out 0.25...0.5 Uc 40...400 Hz 55 °C)
- Maximum Operating Rate
- 1200 cyc/h 55 °C
Control Circuit TypeAC 40...400 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Average Resistance
- 25.5 Ohm inrush 20 °C, 730 Ohm holding 20 °C
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 20-20 W 40...400 Hz
- Inrush Power In Va
- 1650-1650 VA 40...400 Hz cos phi 0.9 (at 20 °C)
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- [Uc] Control Circuit Voltage
- 220...240 V AC 40...400 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Operating Time100...200 ms opening, 40...80 ms closing
Local Publishable Date2025-02-26
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1505009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLX1FL
Inductance Of Closed Circuit3.35 H
Mechanical Durability5 Mcycles
Product Or Component Typecontactor coil
Range Of ProductTeSys F
Sustainable PackagingNo
Hold-in Power Consumption In Va22-22 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)1.410 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- LC1F630, LC1F1250
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1505009EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
