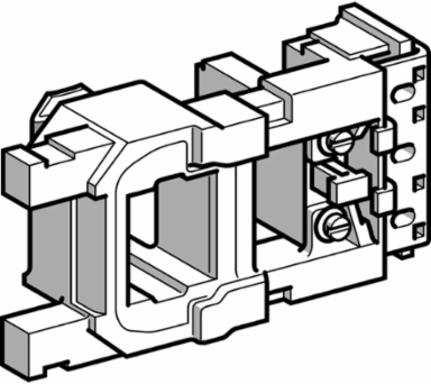

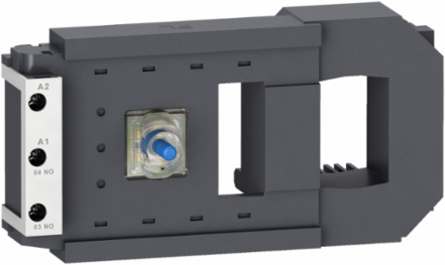

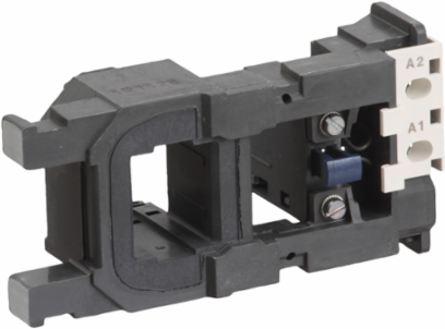

Schneider Electric LX9FF110 TeSys F - specific contactor coil - 110...115 V AC 40...400 Hz low consumption
- MPN: LX9FF110
- PPN: SCH-LX9FF110
CAD
$525.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F115, F150, FG150. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia
Complementary Attributes
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 55 °C), drop-out 0.2...0.55 Uc 55 °C)
- Maximum Operating Rate
- 2400 cyc/h 55 °C
Control Circuit TypeAC 40...400 Hz low consumption
Uc Control Circuit Voltage110...115 V AC 40...400 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Average Resistance
- 14.8 Ohm inrush 20 °C, 579 Ohm holding 20 °C
- Carbon Footprint Of The Distribution Phase A4
- 0.049774529084509175, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0003999825873412172, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 69 kg CO2 eq., 68.82266544572599
- Local Publishable Date
- 2025-07-24
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1505009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LX9FF
- Heat Dissipation
- 5.9-7.2 W
- Inductance Of Closed Circuit
- 2.08 H
- Mechanical Durability
- 10 Mcycles
- Product Or Component Type
- specific contactor coil
- Range Of Product
- TeSys F
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 70 kg CO2 eq.
- Pep Code
- ENVPEP1505009EN
- Pep Verification Date
- 2025-07-19
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential, In %
- 95
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Operating Time130 ms opening, 35 ms closing
Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.28693227533080673
Carbon Footprint Of The Manufacturing Phase A1 To A30.9 kg CO2 eq., 0.9122731131826548
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Coil Technologywithout built-in suppressor module
Energy Efficiency OptimizedFalse
Hold In Power Consumption In Va6.6-8.1 VA 40...400 Hz (at 20 °C)
Inrush Power In Va690-855 VA 40...400 Hz (at 20 °C)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
ReturnabilityNo
Sustainable PackagingNo
Warranty In Months18
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
