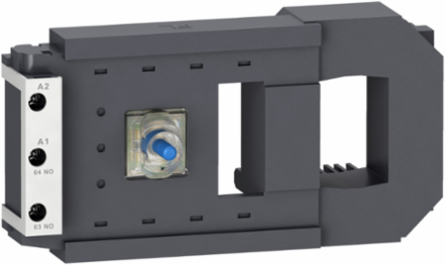

Schneider Electric LX9FF127 TeSys F - specific contactor coil - 120...127 V AC 40...400 Hz low consumption
Schneider Electric LX9FF127 TeSys F - specific contactor coil - 120...127 V AC 40...400 Hz low consumption
- MPN: LX9FF127
- PPN: SCH-LX9FF127
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$525.12/ EA
Description
TeSys F AC coil 120/127V 40-400Hz (voltage code G7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F115, F150, FG150. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
Net Weight0.43 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
Circularity ProfileENVEOLI1505009EN
Complementary
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 55 °C) || drop-out 0.2...0.55 Uc 55 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 5.9-7.2 W
Inrush Power In Va690-855 VA 40...400 Hz (at 20 °C)
Hold-In Power Consumption In Va6.6-8.1 VA 40...400 Hz (at 20 °C)
Specifications
- Average Resistance
- 19 Ohm inrush 20 °C || 746 Ohm holding 20 °C
- Control Circuit Type
- AC 40...400 Hz low consumption
- Product Or Component Type
- specific contactor coil
- Inductance Of Closed Circuit
- 2.65 H
- Operating Time
- 130 ms opening || 35 ms closing
- Device Short Name
- LX9FF
[Uc] Control Circuit Voltage120...127 V AC 40...400 Hz
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Maximum Operating Rate2400 cyc/h 55 °C
Product CompatibilityLC1F150 || LC1F115
Mechanical Durability10 Mcycles
