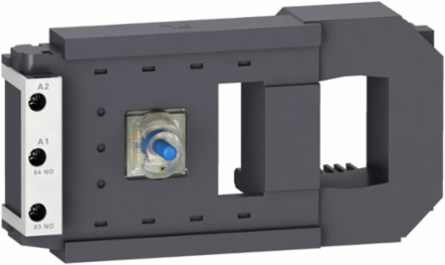

Schneider Electric LX9FF415 TeSys F Specific Contactor Coil 415-440V AC, Low Consumption, 2400 Cycles/Hour
- MPN: LX9FF415
- PPN: SCH-LX9FF415
CAD
$525.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys F AC coil 415/440V 40-400Hz (voltage code N7/R7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F115, F150, FG150. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Complementary Attributes
- Control Circuit Type
- AC 40...400 Hz low consumption
- Maximum Operating Rate
- 2400 cyc/h 55 °C
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc 55 °C)drop-out 0.2...0.55 Uc 55 °C)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.049774529084509175, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0003999825873412172, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 69 kg CO2 eq., 68.82266544572599
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- without built-in suppressor module
- Energy Efficiency Optimized
- False
- Inductance Of Closed Circuit
- 30 H
- Mechanical Durability
- 10 Mcycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- No
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 78.84
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- [Uc] Control Circuit Voltage
- 415...440 V AC 40...400 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504504000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.28693227533080673
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.9122731131826548
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Resistance218 Ohm inrush 20 °C8460 Ohm holding 20 °C
Device Short NameLX9FF
Heat Dissipation5.9-7.2 W
Inrush Power In Va690-855 VA 40...400 Hz (at 20 °C)
Operating Time130 ms opening35 ms closing
Product Or Component Typespecific contactor coil
Range Of ProductTeSys F
Software Versionv6.1
Total Lifecycle Carbon Footprint70 kg CO2 eq.
Pep Verification Date2025-07-19
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %95
Hold-in Power Consumption In Va6.6-8.1 VA 40...400 Hz (at 20 °C)
Package Weight(Lbs)517.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- LC1F115, LC1F150
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 70.0720453459113
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep Verification Date2025-07-19
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- specific contactor coil
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
