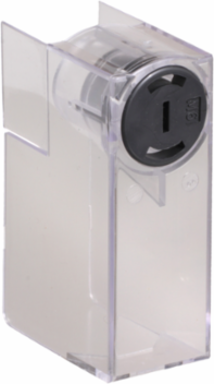

Schneider Electric LA9F708 TeSys F Terminal Shroud Set of 8 for 4-Pole Contactors, Green Premium
- MPN: LA9F708
- PPN: SCH-LA9F708
- UNSPSC: 39121529
CAD
$518.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys F power terminal protection shrouds, for 4-pole contactors LC1 F2254, F2654, F3304, F4004, F5004 and CR1 F2654, F4004, F5004. Set of 8 units. The shrouds protect against direct contact on terminals by providing a front face IP20 protection. One shroud per power terminal, to be attached to the connection screw of the terminal. Green Premium compliant (RoHS/REACh).
Features
- Environmental data compliant
- It provides each power terminal with protection, and IP20 at front
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia |
|---|
| Weight | 250 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase A4 | 0.08295754847418196, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0006666376455686954, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 69 kg CO2 eq., 68.82266544572599 |
| Local Publishable Date | 2026-07-28 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1505009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LA9F |
| Mounting Location | on power terminal |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 8 |
| Range Of Product | TeSys F |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 71 kg CO2 eq. |
| Database Version | 2023-02 |
| Accessory / Separate Part Category | protection accessory |
| Customs Code | 8538908180 |
| Functional Unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 78.84 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.4782204588846779 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 1.520455188637758 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | LA9F terminal shroud |
| Energy Efficiency Optimized | False |
| Number Of Poles | 1P |
| Product Or Component Type | terminal shroud |
| Range | TeSys |
| Returnability | No |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 95 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1505009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | LC2F2254, F2654, LC1F2254, F2654, F3304, F4004, F5004, CR1F2654, F4004, F5004 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 70.90496527936817 |
| Environmental Disclosure | ENVPEP1505009EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-07-19 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
General Attributes
| Product Or Component Type | terminal shroud |
|---|
| Range Of Product | TeSys F |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|---|
| ETIM 10 | EC002498 |
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
