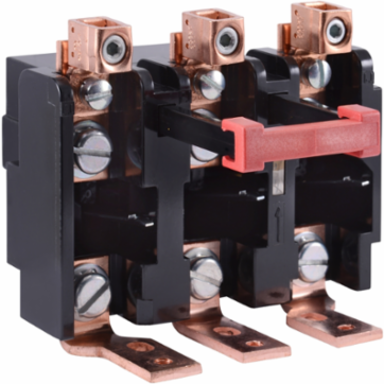

Square D 9065SDO12 Overload Relay, NEMA Size 3, 3 Pole, Melting Alloy, 90A, 600V AC
Square D 9065SDO12 Overload Relay, NEMA Size 3, 3 Pole, Melting Alloy, 90A, 600V AC
- MPN: 9065SDO12
- UPC: 785901788539
- PPN: SCH-9065SDO12
- UNSPSC: 39122330
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$579.85/ EA
Description
Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This replacement overload relay for a Type S NEMA size 3 three phase starters with 3 poles. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. The output contact is replaceable. Relay has a maximum voltage rating of 600 VAC. This overload relay is 5.59 inches tall, 5.31 inches wide and 5.74 inches deep.
Features
- Comes standard installed both non-reversing and reversing and combination and multispeed starters
- Simple Installation
- Field interchangeable thermal units for replacement motor installations
- Available as direct mount or separate mount
- Provides thermal protection for the most costly equipment
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase A4
- 0.9605181937900688, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.606410062371674, 0.6 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 5 kg CO2 eq., 5.069037029711683
- Local Publishable Date
- 2025-11-13
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Not compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Mounting Support
- mounting plate
- Phase
- 3 phase
- Product Destination
- starter
- Returnability
- Yes
- Thermal Overload Type
- melting alloy
- Ue Rated Operational Voltage2
- 600 V AC
- Stocking Flag
- N
- Pep Code
- ENVPEP1312002EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Ue Rated Operational Voltage5
- 600 V AC
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 1.8779227873040256
Carbon Footprint Of The Manufacturing Phase A1 To A316 kg CO2 eq., 16.090637844974797
Local Data StatusPublishable
ManufacturerSchneider Electric
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI1312002EN
ROHS EUR StatusWill not be Compliant
ROHS EUR Full Compliance Status IdNOT_COMPLIANT
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Package Weight Lbs1.157 kg
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductReplacement Relay
Sustainable PackagingNo
Total Lifecycle Carbon Footprint25 kg CO2 eq.
Medium DescOverload Relay, Type S, melting alloy, replacement overload, NEMA size 3, 3 pole, 3 phase, 90A, 600VAC
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; United States, US
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1312002EN
- EU ROHS Directive
- Not compliant
- Packaging Made With Recycled Cardboard
- No
- Pep Code
- ENVPEP1312002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Carbon Footprint24.604525918152248
Environmental DisclosureENVPEP1312002EN
Nema Size3
Packaging Without Single Use PlasticNo
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
Range Of ProductReplacement Relay
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 145.8 mm
