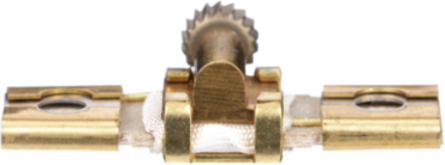

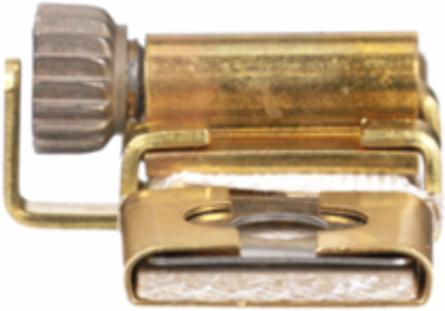

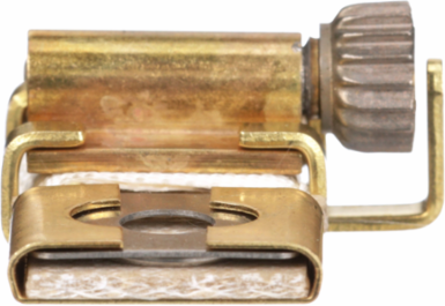

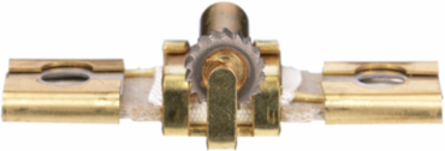

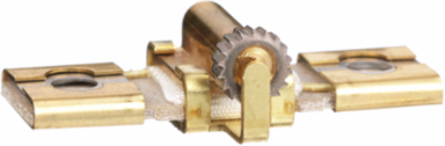

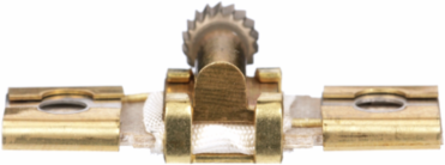

Square D B2.65 Thermal Unit, Type S, 2 Pole, 30 Amps, Melting Alloy, Class 20
- MPN: B2.65
- UPC: 785901587354
- PPN: SCH-B2.65
CAD
$49.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This two pole fuse holder will accept class CC fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 200,000 Amp. This fuse holder is UL listed and CSA certified.
Features
- The Schneider Electric B2.65 thermal unit is fully compatible with Square D Type S and Type B magnetic starters, specifically engineered for NEMA Sizes 00-7. Its precise plug-in mounting allows industrial electricians and maintenance technicians to perform direct, drop-in replacements on standard 8536 series motor starters without altering the existing physical footprint.
- Utilizing an uncompensated melting alloy design, this Class 20 thermal overload relay provides standard trip protection by triggering within 20 seconds during a sustained overcurrent event.
- Built to withstand tough industrial conditions, this thermal unit is rated for maximum electrical security up to 600 V AC. The mechanical melting alloy mechanism avoids the nuisance tripping often caused by ambient vibration, offering a dependable, tamper-proof alternative to electronic relays that ensures your heavy-duty ventilation, pumping, or conveyor motors run continuously and safely.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30A
- Motor Tripping Class
- 20
- Number of Poles
- 2
- AIC Rating
- 200,000 Amp
- Fuse Clips Material
- Tin-plated copper alloy
- Range of Product
- B
- China RoHS
- Out of Scope
- REACH Regulation
- Contains SVHC above threshold
- Type
- S
Voltage600V
Thermal Overload TypeMelting alloy
Fuse Type CompatibilityClass H, R, CC, M, J
Wire Gauge14 to 10 AWG (2.5 to 4 mm²)
Fuse Holder Base MaterialHigh impact thermoplastic
PVC FreeYes
EU RoHSNot applicable
Country of OriginMexico
