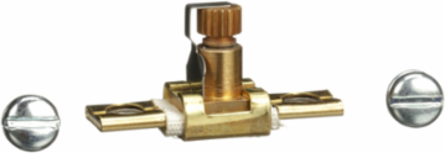

Square D A.54 Thermal Unit, Type S, Type A, melting alloy, Class 20
- MPN: A.54
- UPC: 785901585107
- PPN: SCH-A.54
CAD
$49.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Thermal units are intended to protect motors, controllers, and branch circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses or circuit breakers. Class 20 thermal units respond to overload current conditions according to trip curves. These thermal units will trip in 20 seconds or less on overload conditions. The proper thermal unit is selected using the motor full load current and a selection table. These thermal units have a one piece construction. The motor current passes through a small heater winding within these thermal units. Under overload conditions, the heat causes a special solder to melt allowing a ratchet wheel to spin free thus opening the control circuit contacts and opening the motor contacts.

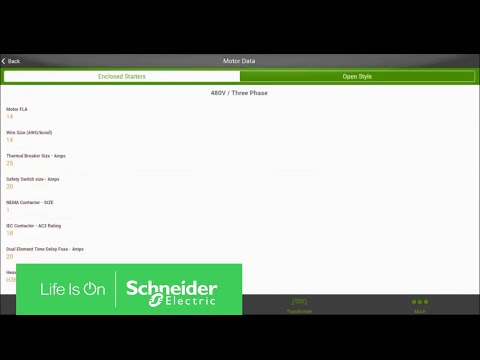

Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 0.015062784881700087, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0060760025185404255, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 13 kg CO2 eq., 12.638798994081128
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Not Applicable/Out of Scope
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Motor Tripping Class
- 20
- Range Of Product
- A
- Software Version
- v6.2.5-6
- Thermal Overload Type
- melting alloy
- Pep Code
- ENVPEP2508030EN
- Pep Verification Date
- 2025-10-08
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.02152658808101991
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.09658369691863965
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterOutside of Europe
Rohs Eur In ScopeNo
Rohs Eur Full Compliance StatusNot Applicable/Out of Scope
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint13 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %86
Package Weight(Lbs)9.072 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP2508030EN
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2508030EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Carbon Footprint12.778048066481029
Eu Rohs DirectiveNot Applicable/Out of Scope
Packaging Without Single Use PlasticYes
Pep Verification Date2025-10-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Range Of Product
- A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
