Documentation & Downloads
Blackburn AL 500-48 TN Compression Lug, Tin-Plated Aluminum, 500 KCMIL, 1/2 Inch Bolt, 5-7/16 Inch x 1-3/4 Inch
- MPN: AL 500-48 TN
- UPC: 783786693948
- PPN: T-B-AL 500-48 TN
CAD
$88.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

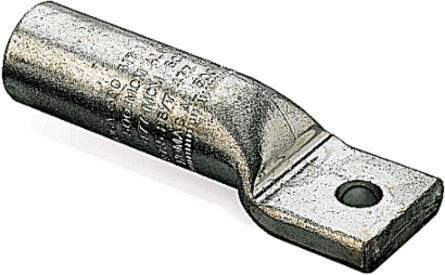

Tin-Plated Aluminum Compression Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad, 500 KCMIL, 1/2 inch Bolt
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Standard
- ANSI C119.4
- Conductor Range
- 500, 477 / 600 / 379.5(26/7), 477(18/1)
- Finish
- Tin Plated
- Temperature Rating
- 90 Degrees Celsius
- Bolt Size
- 1/2 inch
IGCC4668 Wire or cable compression connector
TypeCompression Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
Size5-7/16 inch long x 1-3/4 inch wide
MaterialAluminum
InsulationNo
Conductor TypeConcentric / Compact / ACSR
Packaging
- Outer Quantity
- 25
- Weight Uom
- 50 lbs. per 100
Outer Dimensions (inches)1x1x1
