Weidmuller 1719820000 TM 3/12 HF/HB
- MPN: 1719820000
- PPN: WDM-1719820000
CAD
$0.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

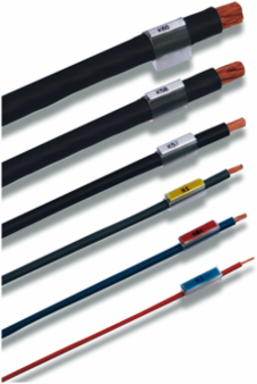

TM, Socket x 8.1 mm, Polyethylene LD, Colour: Transparent, Conductor O.D.: 4 - 6.5 mm
Documentation & Downloads
Specifications
General Data
| Colour | Transparent |
|---|---|
| Material | Polyethylene LD |
| Recommended industries | Transportation, Machinery |
| UL 94 flammability rating | HB |
| Halogen | No |
|---|---|
| Operating temperature range | -40...80 °C |
| Type of printing | neutral |
| Width | 8.1 mm |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 8.1 mm |
|---|---|
| Height | 12 mm |
| Depth | 9.3 mm |
| Net weight | 0.218 g |
| Width (inches) | 0.319 inch |
|---|---|
| Height (inches) | 0.472 inch |
| Depth (inches) | 0.366 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
| UNSPSC | 44-12-17-08 |
Conductor And Cable Markers
| Conductor O.D. | 4 - 6.5 mm |
|---|---|
| Conductor O.D., min. | 4 mm |
| Conductor cross-section, min. | 2.5 mm² |
| Conductor O.D., max. | 6.5 mm |
|---|---|
| Conductor cross-section, max. | 6 mm² |
| Halogen | No |
