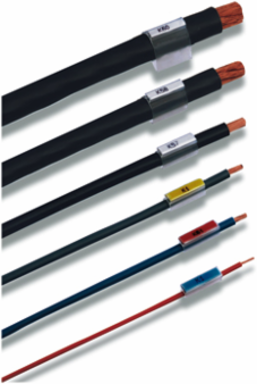

Weidmuller 1719880000 TM 6/12 HF/HB
- MPN: 1719880000
- PPN: WDM-1719880000
CAD
$0.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TM, Socket x 22.2 mm, Polyethylene LD, Colour: Transparent, Conductor O.D.: 15 - 24 mm
Documentation & Downloads
Specifications
General Data
- Colour
- Transparent
- Material
- Polyethylene LD
- Recommended industries
- Transportation, Machinery
- UL 94 flammability rating
- HB
HalogenNo
Operating temperature range-40...80 °C
Type of printingneutral
Width22.2 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 22.2 mm
- Height
- 12 mm
- Depth
- 23.6 mm
- Net weight
- 0.67 g
Width (inches)0.874 inch
Height (inches)0.472 inch
Depth (inches)0.929 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 15 - 24 mm
- Conductor O.D., min.
- 15 mm
- Conductor cross-section, min.
- 35 mm²
Conductor O.D., max.24 mm
Conductor cross-section, max.150 mm²
HalogenNo
