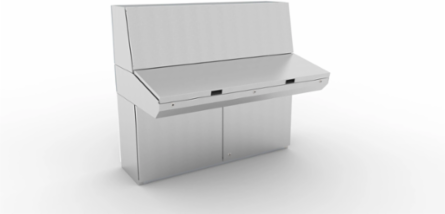

nVent Hoffman MPCS161 Top console, 500x1600x494, Combinable encl., no MP, Stainless steel 304, IP55
- MPN: MPCS161
- UPC: 783510511838
- PPN: HOF-MPCS161
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Console system, MPCS, is IP 55/56 protected. It includes three interchangeable sections, top, desk and bottom. This Console System Stainless Steel, MPCS, MPCS161 item measures 500x1600x494mm has a material of Stainless Steel 304 color Unpainted, finish Brushed.
Features
- Material: AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.
- Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
- Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Top section and desk panels held open by self engage/self release mechanical panel stays. Concealed hinges allowing 90° opening on the desk. Double doors on 1200 mm and 1600 mm wide base units.
- Mounting plate: Standard in base unit. Fixed by fixing brackets on C rail, top and bottom for depth adjustment. Optional in desk and top section units.
- Lock: Double-bit 3 mm locks for top section and desk unit. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.
- Cable access: Bottom opening in base unit for cable access. Bottom plates for cable glanding supplied as standard.
- Earthing: M8 threaded studs on bodies, doors and rear panels.
- Finish: 400 pre-grained stainless steel.
- Protection: Single door: IP 66, TYPE 4X, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
- Delivery: The base unit is provided with a mounting plate as standard. Desk and top section units have mounting plates provided as accessories. All top and base apertures can be closed by choosing the appropriate accessory plate. Suitable nuts and washers for the various earthing studs are provided.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,600
- Material
- Stainless Steel 304
- Type
- Top Section Unit
- Thickness (T)
- 2
- Weight
- 124.9
Height (H)500
Depth (D)494
Mounting Plate IncludedNo
FinishBrushed
Protection RatingNEMA Type 12
