Brady 145766 ToughWash Tags: This lock/tag may only be removed by: Name: Date:
- MPN: 145766
- UPC: 754473545581
- PPN: BRD-145766
- UNSPSC: 55121513
CAD
$96.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

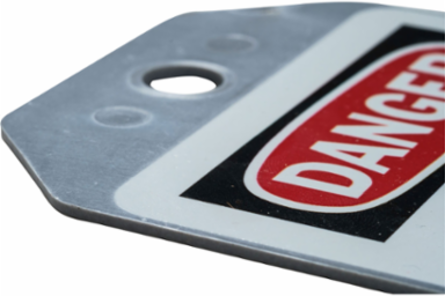

ToughWash® Metal Detectable Polypropylene (B-869) tags feature in-molded, protected graphics for use in harsh environments, such as the Food and Beverage Processing industry.
Features
- With metal and X-ray detectable properties, these products won’t compromise your food safety
- Durable plastic-encapsulated material withstands harsh washdown environments with temperatures up to 175°F (80°C) and pressure up to 1500 PSI
- ToughWash® Metal Detectable Polypropylene (B-869) tags feature protected graphics for use in harsh environments like the Food & Beverage industry
- Full color, high resolution printing enables clear graphics and easy-to-read professional visuals in your facility
Documentation & Downloads
Specifications
Key Specifications
| Attachment Type | Nylon Ties |
|---|---|
| Color | Black/Red on White |
| Header | DANGER |
| Language | English |
| Perforated | Not Perforated |
| Reverse Header | DANGER |
| Self-Locking | No |

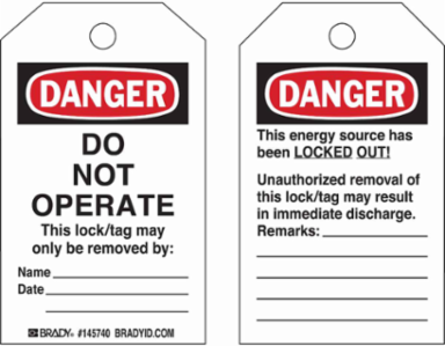

| Text Legend | DO NOT OPERATE THIS LOCK/TAG MAY ONLY BE REMOVED BY: NAME: DATE: |
| Write-On | Yes |
| Brady Material Number | B-869 |
| Laminated | Not Laminated |
| Material Properties | Harsh Wash-resistant; Rigid |
| Withstands Pull Force | 84 lb |
| Dimensions (Metric) | 127 mm H |
| Height (in/ft/yd) | 5 in |
| Hole Inside Diameter (in/ft/yd) | 0.375 in |
| Maximum Service Temperature °C | 80 °C |
| Minimum Service Temperature °C | -40 °C |
| Sign Size-General | 5 in x 3 in |
| Width (mm/cm/m) | 76.2 mm |
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145; OSHA 1910.147 |
| Includes | (10) Metal Detectable Nylon Cable Ties |
| Number of Printed Sides | 2 |
| Primary Noun, Basic Function | Tag |
| Reverse Legend | THIS ENERGY SOURCE HAS BEEN LOCKED OUT! UNAUTHORIZED REMOVAL OF THIS LOCK/TAG MAY RESULT IN |
| Shape | Rectangle |
| Trade Name | ToughWash® |
| Write-On Area | Yes |
| Grommet Material | No Grommet |
| Material | Metal Detectable Polypropylene |
| SAP B-Number | B-869 |
| Dimensions | 5 in H x 3 in W |
| Dimensions 2 | 5 in H x 3 in W |
| Height (mm/cm/m) | 127 mm |
| Hole Inside Diameter (mm/cm/m) | 9.5 mm |
| Maximum Service Temperature °F | 176 °F |
| Minimum Service Temperature °F | -40 °F |
| Width (in/ft/yd) | 3 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliant | Yes |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
