Weidmuller 1283450000 TPSDHA KTB 130X50 S2 R
- MPN: 1283450000
- PPN: WDM-1283450000
CAD
$58.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

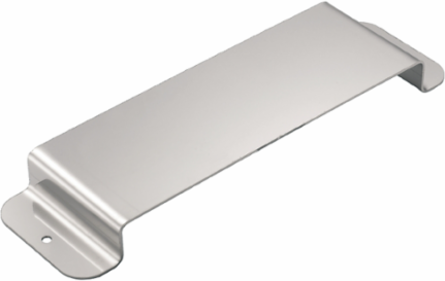

Klippon TB (Terminal Box), Ratings plate holder, Riveted, Height: 50 mm, Width: 171 mm, Depth: 16.5 mm, Material: Stainless steel 1.4301, Mirror polished, silver
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
General Information On Accessories
| Material | Stainless steel 1.4301 |
|---|---|
| Surface finish | Mirror polished |
| Material thickness | 1 mm |
|---|
Dimensions And Weights
| Width | 171 mm |
|---|---|
| Height | 50 mm |
| Depth | 16.5 mm |
| Net weight | 80 g |
| Width (inches) | 6.732 inch |
|---|---|
| Height (inches) | 1.969 inch |
| Depth (inches) | 0.65 inch |
Classifications
| ETIM 6.0 | EC002626 |
|---|---|
| eClass 9.0 | 27-18-28-16 |
| eClass 10.0 | 27-18-28-16 |
| ETIM 7.0 | EC002626 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
General Information
| Material thickness | 1 mm |
|---|---|
| Surface finish | Mirror polished |
| Material | Stainless steel 1.4301 |
|---|---|
| Note: protection class | Mounting is possible in any position on the lid, including inside the sealed area of the housing. The lid seal must, however, not be damaged. To guarantee a 100% seal, the assembly must be done using the fixing material, 1252190000 TPSD FIXING SET KTB. The attachment of the rating plate is done individually onto the rating plate holder. We recommend the use of fixing material 1285200000 SD FIXING SET for mounting. |
