Weidmuller 1279320000 TPSDHA KTB 70X70M3 S2 R
- MPN: 1279320000
- PPN: WDM-1279320000
CAD
$45.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

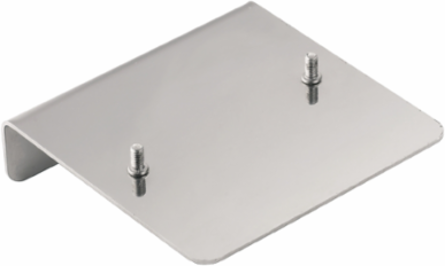

Klippon TB (Terminal Box), Ratings plate holder, Riveted, Height: 70 mm, Width: 70 mm, Depth: 20 mm, Material: Stainless steel 1.4301, Mirror polished, silver
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
General Information On Accessories
- Material
- Stainless steel 1.4301
- Surface finish
- Mirror polished
Material thickness1 mm
Dimensions And Weights
- Width
- 70 mm
- Height
- 70 mm
- Depth
- 20 mm
- Net weight
- 52 g
Width (inches)2.756 inch
Height (inches)2.756 inch
Depth (inches)0.787 inch
Classifications
- ETIM 6.0
- EC002626
- eClass 9.0
- 27-18-28-16
- eClass 10.0
- 27-18-28-16
ETIM 7.0EC002626
eClass 9.127-18-92-90
General Information
- Material thickness
- 1 mm
- Surface finish
- Mirror polished
MaterialStainless steel 1.4301
Note: protection classThe attachment is done outside the sealed area of the housing. The angle bracket is provided with two 3.3 mm diameter holes. The holes in the housing are to be made by the customer. The attachment can be done using 3.3 mm rivets or M3 screws. The respective ratings plate is fastened to the angle bracket with M3 nuts. We recommend using M3 self-locking nuts.
