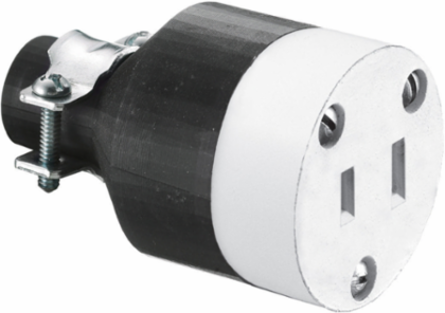

Bryant RP649 Straight Blade Female Connector 15A 125V 2-Pole Non-Grounding 1-15R .40 Inch Cord Diameter
- MPN: RP649
- UPC: 883778112577
- PPN: HBL-RP649
- UNSPSC: 39121421
CAD
$9.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TradeSelect, Straight Blade, Female Connector, 15A 125V, 2-Pole 2-Wire Non-Grounding, 1-15R, .40" Cord Diameter, White
Features
- Female Connector
- 15A 125V
- 2-Pole 2-Wire Non-Grounding
- Polarized
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 3.500 in
- Amperage Rating
- 15 A
- Color
- Black, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- 1-15R
- Number of Poles
- 2-Pole
- Standard
- UL Listed
- Type
- Plugs
- Connectivity
- Screw Terminals
- Nema Rating
- 1-15R
- Number Of Poles
- 2-Pole
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Cord Mounted
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.4 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Industry Standard(s)UL Listed
ApplicationTrade Select Residential Devices
Conductor Range#16 AWG to #14 AWG
InsulationInsulated Body
Number of Conductors2-Wire Non-Grounding
Special FeaturesPolarized
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 VAC
Display SizeStandard
Number Of Conductors2-Wire Non-Grounding
Description - InvoiceCONN, 1-15R, 15A 125V, 2W, .40" CORD, BK
Harmonization Code8536694020
MSDS FlagNo
Current Rating15 A
SeriesPlugs & Connectors
BOX SIZE2.800x7.900x3.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778112577
Case Weight10.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
