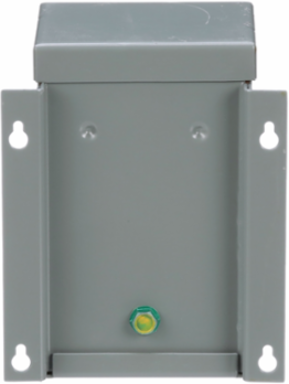

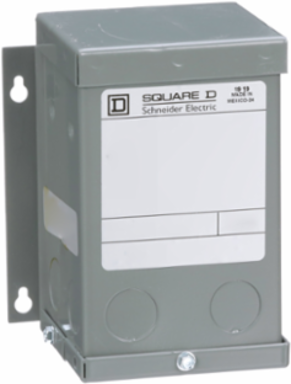

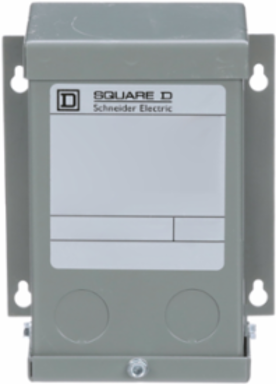

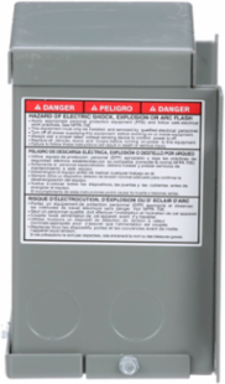

Square D 100SV51A Transformer, dry type, encapsulated, 0.1kVA, 1 phase, 600V primary, 120/240V secondary, 2A, 55C rise [TAA]
- MPN: 100SV51A
- UPC: 785901020295
- PPN: SCH-100SV51A
CAD
$377.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 0.1 KVA. This transformer has a primary voltage of 600 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 5.5 in (H), 4.47 in (W), 3.44 in (D). This product complys to UL & CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Depth
- 3.44 in
ComplianceTAA Compliant
Complementary Attributes
- Rated Power In Va
- 0.1 kVA
Important Information Attributes
- Certificate Agency
- CSA, cULus, UL Listed
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- Y
- Device Type
- Transformer - dry
- Traceability
- No
- Average Life Duration
- 25 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Box Number
- 2A
- Enclosure Mounting
- wall mounted
- Phase
- 1 phase
- Product Or Component Type
- Dry Sealed Transformer
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 5.5 in
- Nbr. Of Units In Pkg.
- 1
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPSIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
With Recycled CardboardNo
Product Kit IdentifierN
Enclosure Materialpainted sheet steel
Insulation Temperature105 °C
Primary Voltage600 V 120/240 V
ReturnabilityNo
Temperature Rise55 °C
Pep CodeENVPEP1407010EN
Width Nominal4.47 in
Package Weight(Lbs)2.041 kg
Customs Code8504314065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407010EN
- Nema Degree Of Protection
- NEMA 3R
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1407010EN
Reach Free ShvcYes
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Phase
- 1 phase
Product Or Component TypeDry Sealed Transformer
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
