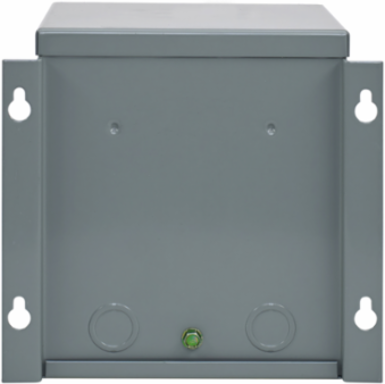

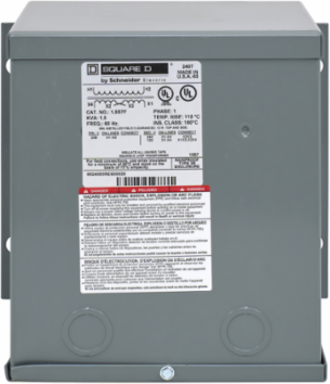

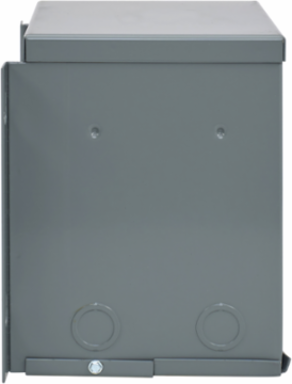

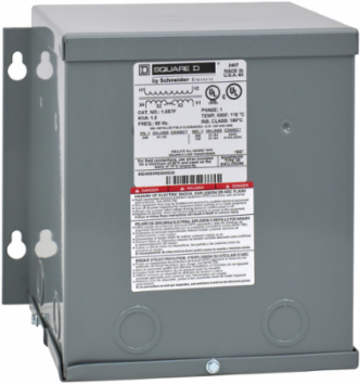

Square D 1.5S7F Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]
![Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/e0a4fe10376515f08e20e656e11a18a850121726-medium.png)
![Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/957c2eddbbbbd4b845a3e4e010c34d8af593ae4d-medium.png)
![Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/77b14d3c946cb2af90e758f260017a381ff13b00-medium.png)
![Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/04dff8218708a83f39055f56bafa7a66474698cc-medium.png)
Square D 1.5S7F Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]
- MPN: 1.5S7F
- UPC: 785901313212
- PPN: SCH-1.5S7F
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3411.17/ EA
Description
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 1.5 KVA. This transformer has a primary voltage of 208 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 8.25 in (H), 8.68 in (W), 6.56 in (D). This product complys to UL & CSA standards.
Features
- Resin filled transformers are epoxy encoapsulated
- Individual enclosures from 50VA through 5kVA
- For three phase applications
- Can be configured into autotransformer
- This product is TAA compliant.
Specifications
Conformance Attributes
- Product Certifications
- CSA, cULus, UL Listed
Complementary Attributes
- Rated Power In VA
- 1.5 kVA
Important Information Attributes
- Local Data Status
- Publishable
- Device Type
- Transformer - dry
- Traceability
- No
- Average Life Duration
- 25 year(s)
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Enclosure Material
- painted sheet steel
- Insulation Temperature
- 180 °C
- Phase
- 1 phase
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Temperature Rise
- 115 °C
- Stocking Flag
- Y
- Pep Code
- ENVPEP1407010EN
Local Publishable Date2025-11-19
ServiceabilityNo
Field Service DivisionPSIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Box Number8A
Enclosure Mountingwall mounted
Package Weight Lbs13.608 kg
Primary Voltage208 V 120/240 V
Product Or Component TypeDry Sealed Transformer
Sustainable PackagingNo
Medium DescTransformer, dry type, encapsulated, 1.5kVA, 1 phase, 208V primary, 120/240V secondary, 8A, 115C rise [TAA]
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407010EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1407010EN
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
Product Or Component TypeDry Sealed Transformer
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Compliance
- TAA Compliant
Depth6.56 in
