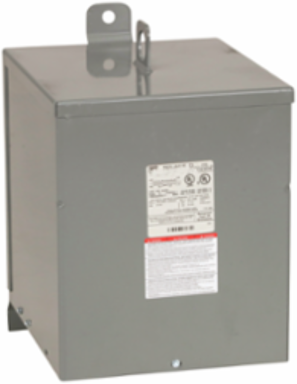

Square D 5S7F Resin Encapsulated Transformer 5 kVA 1 Phase 208V Primary 120/240V Secondary NEMA 3R

MPN: 5S7F
UPC: 785901338390
PPN: SCH-5S7F
UNSPSC: 39121001

$4459.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 5 KVA. This transformer has a primary voltage of 208 V and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 14.75 in (H), 9.75 in(W), 11.75 in (D). This product complys to UL & CSA standards.

Features

The DOE EX are terminals sized to handle wire ranges to match Square D circuit breakers, switches, panelboards, etc
Located to meet NEC bending radius and layout to simplifiy connections
The IZ Levels will allow for designing with the minimum AIC Panels available
The In-rush current limited to expand the Square D circuit breaker options at both 125 and 250% sizing
The primary voltage of 600 V delta and a secondary voltage of 208Y/120 V

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	11.75 in

Compliance	TAA Compliant

Complementary Attributes

Rated Power In Va	5 kVA

Important Information Attributes

Certificate Agency	cULus, UL Listed, CSA
Local Publishable Date	2026-09-04
Device Type	Transformer - dry
Traceability	No
Average Life Duration	25 year(s)
Weee Product Category	4
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Enclosure Material	painted sheet steel
Insulation Temperature	180 °C
Primary Voltage	208 V 120/240 V
Product Or Component Type	Dry Sealed Transformer
Sustainable Packaging	No
Height Nominal	14.75 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PSIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1909
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Box Number	13B
Enclosure Mounting	wall mounted
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Temperature Rise	115 °C
Width Nominal	9.75 in
Customs Code	8504320000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Nema Degree Of Protection	NEMA 3R
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
