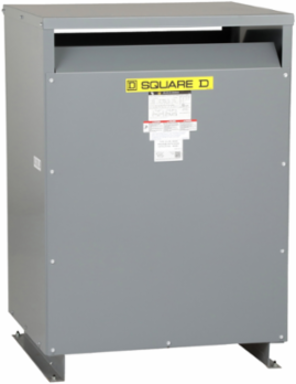

Square D 118T145HDIT Dry Isolation Transformer 118 kVA 3-Phase 460V Delta Primary 460Y/265V Secondary

MPN: 118T145HDIT
UPC: 785901843313
PPN: SCH-118T145HDIT
UNSPSC: 39121029

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for robust power distribution needs, this drive isolation transformer from Schneider Electric boasts a rated power of 118 kVA and is engineered for three-phase systems. With a primary voltage of 460V delta and a secondary voltage of 460Y/265V, it ensures efficient voltage regulation while adhering to stringent environmental standards, including compliance with the Eu RoHS Directive. This transformer features a temperature rise of 150 C and is constructed from aluminum, providing durability and reliability in demanding applications. Additionally, it is mercury-free and free from substances of very high concern, making it a responsible choice for environmentally conscious projects. Please be aware of the warning regarding potential exposure to certain chemicals, as outlined in California Proposition 65.

Features

Designed for typical harmonics per IEEE 519-1993
Conforms to IEEE-597 Class B overload, which requires 150% of load for one minute per hour
Evaluated according to UL Standard 1561 for effects of harmonic heating
Provide reactive control of current harmonics for both AC and DC motor drives
Designed for the thermal and mechanical stress of highly cyclic process control applications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Complementary Attributes

Rated Power In Va	118 kVA

Important Information Attributes

Local Data Status	Publishable
Return Indicator	N
Serviceability	Yes
Field Service Division	PSIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1910
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Box Number	22D
Material	aluminium
Phase	3 phase
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Local Publishable Date	2025-11-13
Device Type	Transformer - dry
Traceability	Yes
Average Life Duration	25 year(s)
Weee Product Category	4
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Insulation Temperature	220 °C
Number Of Tap Offs	2 5 % 1+ 1-
Primary Voltage	460 V delta
Product Or Component Type	Drive Isolation Transformer
Secondary Voltage	460Y/265 V
Temperature Rise	150 °C
Customs Code	8504330040

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Nema Degree Of Protection	NEMA 2
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
