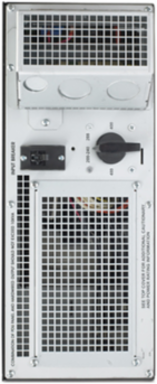

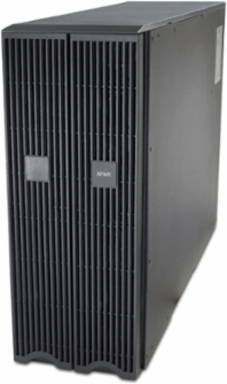

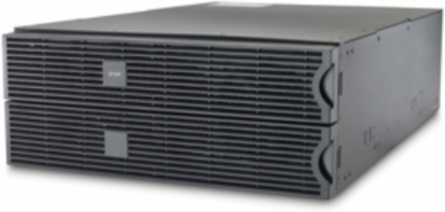

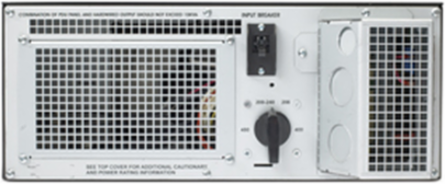

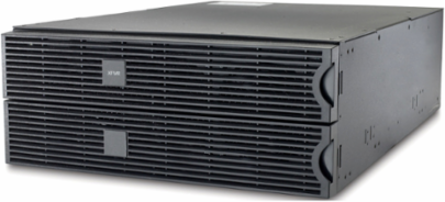

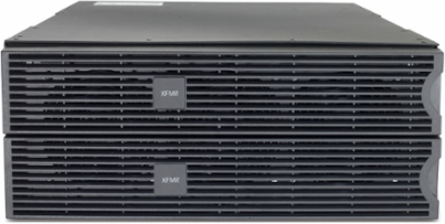

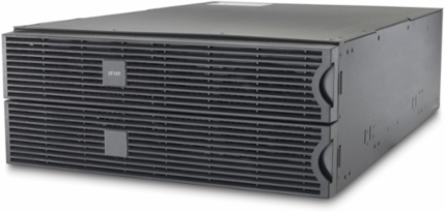

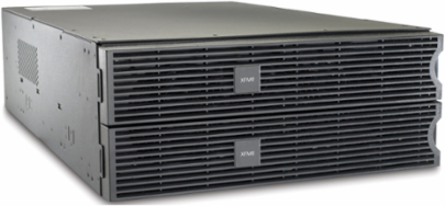

APC APTF10KW01 10KVA Rack-Mountable Isolation Transformer, 220.46 lb, 4U, 120-240 V Output
- MPN: APTF10KW01
- UPC: 731304242208
- PPN: APC-APTF10KW01
CAD
$3902.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
10KVA Rack-Mountable Isolation Transformer, 220.46 lb, 4U, 120-240 V Output
Features
- Rack-Mountable — Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
- Transformer for Step-down or Step-up or Isolation — Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
Documentation & Downloads
Specifications
Additional
- Capacity
- 10 kVA
- Output Voltage
- 120 V, 208 V, 230 V, 240 V
- Max Line Current
- 60 A
- Weight
- 220.46 lb (100 kg)
- Width
- 17.01 in (432 mm)
- Rack Units
- 4U
- Mounting Mode
- Rack-mounted
- Mounting Preference
- Lower
- Standards
- EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3
- Ambient Air Temperature for Storage
- -13 to 149 °F (-25 to 65 °C)
- Operating Altitude
- 0 to 10000 ft
- EU RoHS Directive
- Compliant with Exemptions
Input Voltage208 V, 230 V, 240 V
Input Current Limit60 A
Input Frequency45-65 Hz
Height6.89 in (175 mm)
Depth29.49 in (749 mm)
Output Connector TypeHard Wire 3-wire (H N + E), Hard Wire 3-wire (2PH + G)
Mounting LocationFront, Side
CertificationsCSA, UL Listed
Ambient Air Temperature for Operation32 to 104 °F (0 to 40 °C)
Relative Humidity0 to 95 %
Storage Altitude0 to 50000 ft (0 to 15240 m)
ReachContains Substances of Very High Concern above threshold
