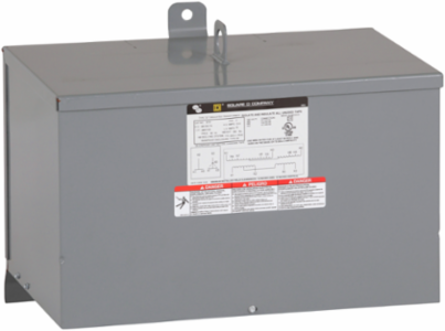

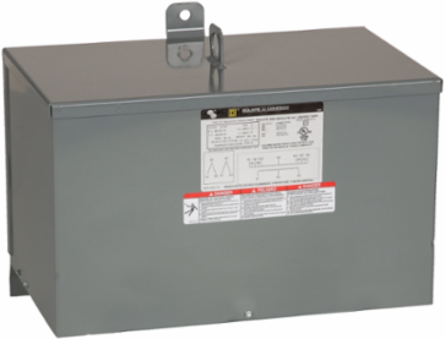

Square D 9T2F Dry Type Encapsulated Transformer 9kVA 480V Delta 208Y/120V NEMA 3R
Square D 9T2F Dry Type Encapsulated Transformer 9kVA 480V Delta 208Y/120V NEMA 3R
- MPN: 9T2F
- UPC: 785901359494
- PPN: SCH-9T2F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3624.58/ EA
Description
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 3 phase, and has a rated power of 9 KVA. This transformer has a primary voltage of 480 V delta, and a secondary voltage of 208Y/120 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 14.75 in (H), 19.1 in (W), 12.25 in (D). This product complys to UL & CSA standards.
Specifications
Environment
- Product Certifications
- UL listed || CSA || cULus
- Insulation Temperature
- 180 °C
Nema Degree Of ProtectionNEMA 3R
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407010
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Complementary

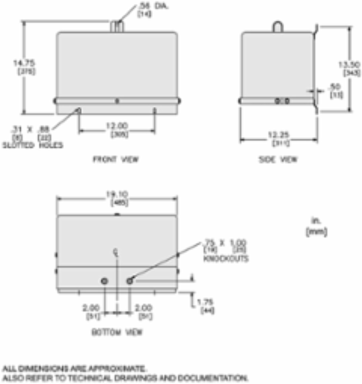

- Height
- 14.75 in
- Temperature Rise
- 115 °C
- Width
- 19.1 in
- Network Number Of Phases
- 3 phases
- Rated Power In Va
- 9 kVA
Enclosure Mountingwall mounted
Enclosure Materialpainted sheet steel
Depth12.25 in
Net Weight127.01 kg
Box Number14C
Specifications

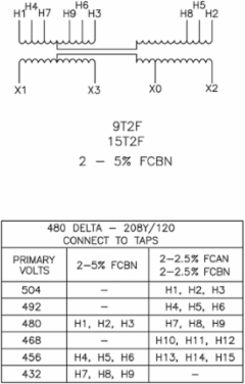

- Number Of Tap-Offs
- 2 5 % FCBN
- Primary Voltage
- 480 V delta 208Y/120 V
Product Or Component TypeDry Sealed Transformer
