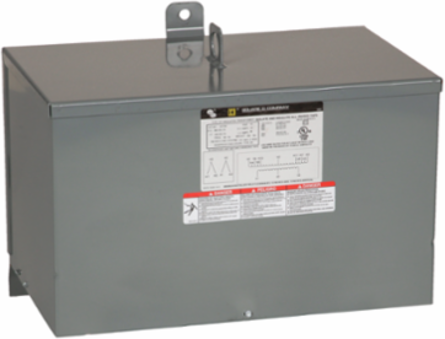

Square D 9T75F Dry Type Encapsulated Transformer 9kVA 3 Phase 480V/240V NEMA 3R
- MPN: 9T75F
- UPC: 785901358046
- PPN: SCH-9T75F
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

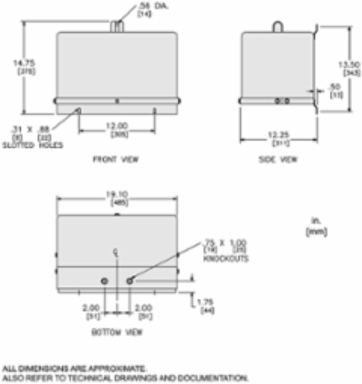

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 3 phase, and has a rated power of 9 KVA. This transformer has a primary voltage of 480 V delta, and a secondary voltage of 240 V delta. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 14.75 in (H), 19.1 in (W), 12.25 in (D). This product complys to UL & CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 12.25 in
ComplianceTAA Compliant
Complementary Attributes
- Rated Power In Va
- 9 kVA
Important Information Attributes
- Certificate Agency
- cULus, CSA, UL Listed
- Local Publishable Date
- 2026-06-30
- Stocking Flag
- N
- Device Type
- Transformer - dry
- Traceability
- No
- Average Life Duration
- 25 year(s)
- Weee Product Category
- 4
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Enclosure Material
- painted sheet steel
- Insulation Temperature
- 180 °C
- Primary Voltage

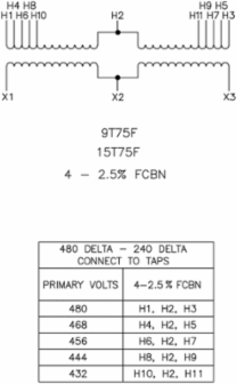

- 480 V delta 240 V delta
- Product Or Component Type
- Dry Sealed Transformer
- Sustainable Packaging
- No
- Height Nominal
- 14.75 in
- Number Of Tap-offs
- 4 2.5 % FCBN
- Package Weight(Lbs)
- 127.006 kg
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPSIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Box Number14C
Enclosure Mountingwall mounted
Phase3 phase
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Temperature Rise115 °C
Width Nominal19.1 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504320000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
Product Or Component TypeDry Sealed Transformer
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
