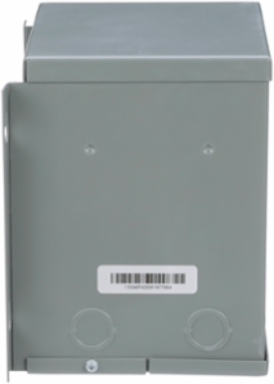

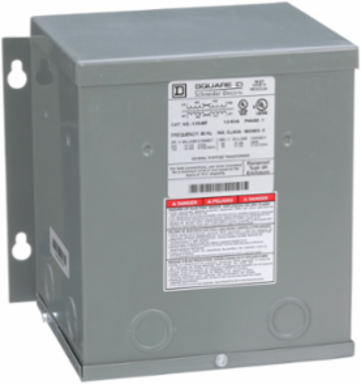

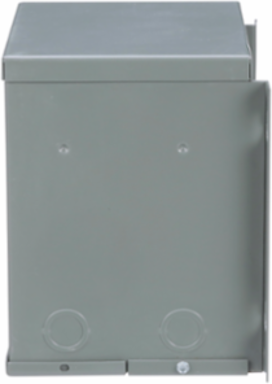

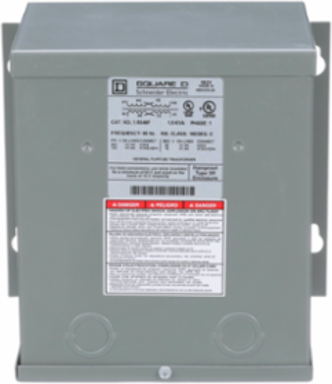

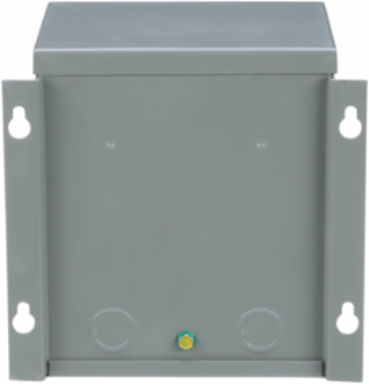

Square D 1.5S46F Buck Boost Transformer, 1.5kVA, NEMA 3R, 120x240V Primary, 16/32V Secondary
Square D 1.5S46F Buck Boost Transformer, 1.5kVA, NEMA 3R, 120x240V Primary, 16/32V Secondary
- MPN: 1.5S46F
- UPC: 785901876458
- PPN: SCH-1.5S46F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1757.80/ EA
Description
A Buck and Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck and Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 16/32V secondary voltage. This transformer has a rated power of 1.5KVA. This transformer has a temperature rise of 115 °C. This product has a UL listed, cULus & CSA certifications.
Specifications
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407010
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Specifications
- Primary Voltage
- 120 x 240 V
- Secondary Voltage
- 16/32 V
- Product Or Component Type
- Buck and Boost Transformer
- Box Number
- 8A
Nema Degree Of ProtectionNEMA 3R
Temperature Rise115 °C
Rated Power In Va1.5 kVA
Insulation Temperature180 °C
