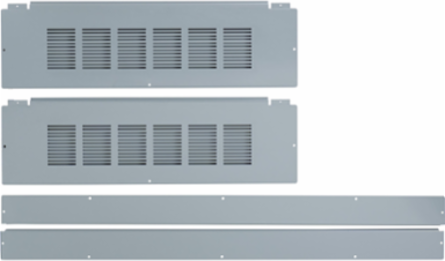

Square D HCW86TS I-Line Panelboard Trim Front, 42-1/4 Inch W x 86 Inch H, Surface Mount
- MPN: HCW86TS
- UPC: 785901089513
- PPN: SCH-HCW86TS
CAD
$980.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Features
- The HCW86TS features a heavy-duty, 4-piece dead front design that breaks down the structural weight into manageable sections during assembly. This allows a single electrical contractor to safely mount and secure the trim without requiring a second set of hands, drastically reducing labor friction and reducing the risk of accidental drops or strain in tight electrical rooms.
- Built to withstand demanding electrical environments, this panelboard cover supports maximum operational thresholds of up to 600VAC and 250VDC. By providing a secure physical barrier over live busbars and circuit breakers, it protects personnel against accidental contact and ensures your facility remains compliant with workplace electrical safety standards.
- The HCW86TS is fully cULus listed and CE certified, strictly meeting both UL and CSA safety guidelines for power distribution equipment. Sourcing this factory-approved accessory ensures your project sails through electrical inspections without red tape, avoiding costly project delays or compliance liabilities.
Documentation & Downloads
Specifications
Additional
- Height
- 86 in
- Depth
- 9.5 in
- Net Weight
- 20.41 kg
- Product Certifications
- CE, cULus, UL Listed
- RoHS Exemption Information
- Yes
- PVC Free
- Yes
- Environmental Disclosure
- ENVPEP1407017EN
- Product Type
- Trim
Width42.25 in
Device MountingSurface
Parts Quantity4
EU RoHS DirectiveCompliant with Exemptions
Reach RegulationSVHC above threshold
Mercury FreeYes
Product RangeI-Line
Country of OriginUS
