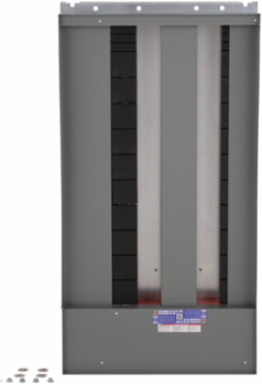

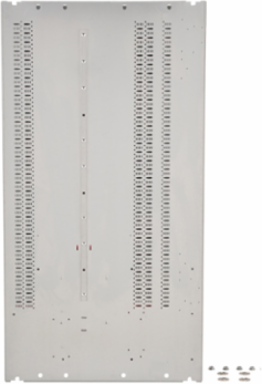

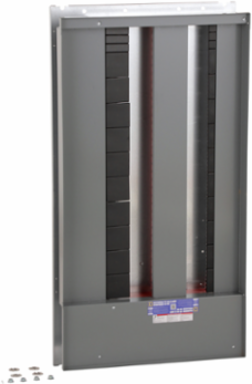

Square D HCP50864 I-Line Power Distribution Panelboard, 400A, 99 Inch Bar Length, 42 Inch W x 86 Inch H x 9.5 Inch D
- MPN: HCP50864
- UPC: 785901431022
- PPN: SCH-HCP50864
CAD
$1803.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCP I-Line panelboard interior is a 400A and has main lugs. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Costa Rica |
|---|
Physical Attributes
| Bar Length | 99 in |
|---|
Complementary Attributes
| Line Rated Current | 400 A |
|---|
Important Information Attributes
| Carbon Footprint Of The Distribution Phase [A4] | 0, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.1479682055762648, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 293 kg CO2 eq., 293.2702034455146 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Load Center Type | main lugs |
| Product Destination | enclosure HCP 42 in 86 in |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 757 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Accommodate and protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm ) with rated current In = 400 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use) |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 78 |
| Width Nominal | 34.38 in |
| Package Weight(Lbs) | 63.049 kg |
| Warranty (In Months) | 18 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 92 kg CO2 eq., 91.53944540845383 |
|---|---|
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 372 kg CO2 eq., 372.3625843996462 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2541 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | interiors |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2509033_V1 |
| Pep Verification Date | 2025-11-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 66 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538100000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 757.3202014591909 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2509033_V1 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2509033_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | interiors |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
