Square D HCW50TSD I-Line Power Distribution Panelboard, Surface Mount, 42.25 Inch W x 50 Inch H, 4 pcs
- MPN: HCW50TSD
- UPC: 785901089360
- PPN: SCH-HCW50TSD
- UNSPSC: 39121112
CAD
$558.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

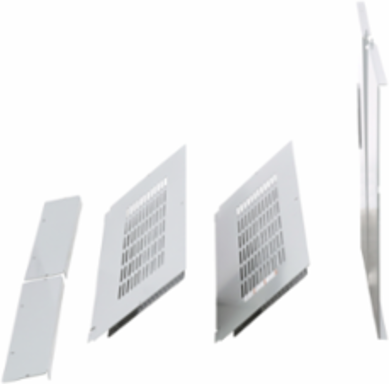

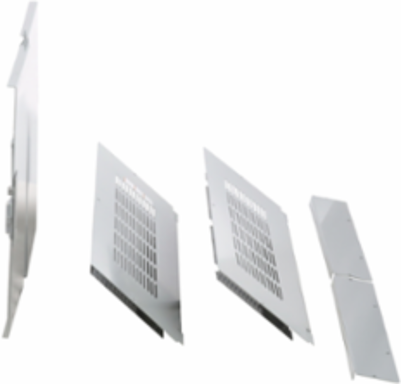

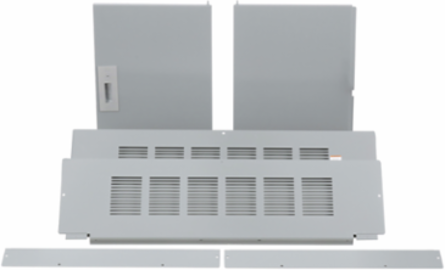

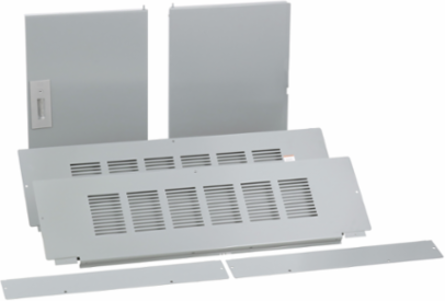

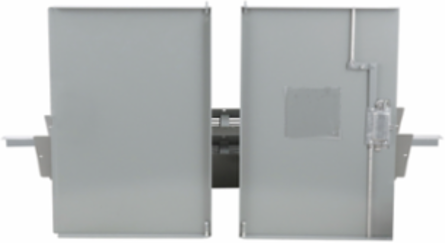

Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This trim front kit is used with HCP I-line distrubution panelboard and surface mounted. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139. This product comes with an 18 month warranty.
Features
- 600VAC, 250VDC maximum
- Fully rated and series rated system available
- Dead front trim is easily installed
- Factory assembled or ready to install
- UL Listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 9.5 in |
| Weight | 30844 g |
|---|
Important Information Attributes
| Certificate Agency | CE, cULus |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 41 kg CO2 eq., 41.24911310305775 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 152 kg CO2 eq., 152.30544931946181 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | trim |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 203 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 42.25 in |
| Customs Code | 8538908160 |
| Silicone Free | Yes |
| Functional Unit Description | Accommodate and protect control, command and protection devices via a panelboard cover/trim with door (2184.4 mm x 241.3 mm x 1073.15 mm) , providing protection levels IP = IP30 and IK = IK07,or a reference service life of 20 years, in commercial/industrial applications |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 97 |
| Carbon Footprint Of The Distribution Phase A4 | 8.913533308495794, 9 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.03933950142459122, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Number Of Doors | 1 |
| Product Destination | panelboard HCP 42 in 50 in |
| Quantity Per Set | 4 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 50 in |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Carbon Footprint | 202.50743523243995 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2509036EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2509036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | trim |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
