Weidmuller

Weidmuller 0514500000 TS 35X7.5/LL 2M/ST/ZN

TS 35X7.5/LL 2M/ST/ZN
  • MPN: 0514500000
  • PPN: WDM-0514500000

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$4.89/ Mtr

Description

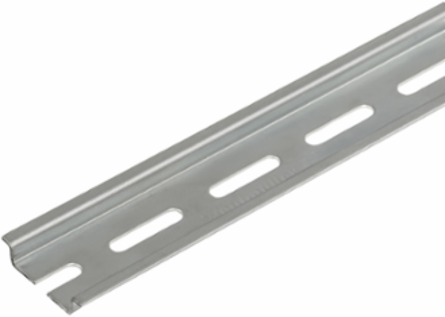

Rail, TS 35, TS 35 x 7.5, with slot, Steel, galvanized, chromium-plated

Specifications

Mounting Rail

Drill-hole diameter
5.2 mm
Slit gap
11 mm
Slit width
5.2 mm
Solder eyelet hole diameter (D)
5.2 mm
Thickness
1 mm
Short circuit strength corresponds to E-Cu wire16 mm²
Slit length25 mm
Slotted drill holesYes
Spacing of holes, centre-to-centre36 mm

Dimensions And Weights

Width
35 mm
Height
35 mm
Depth
7.5 mm
Net weight
312.5 g
Width (inches)1.378 inch
Height (inches)1.378 inch
Depth (inches)0.295 inch

Classifications

ETIM 6.0
EC001285
eClass 9.0
27-40-06-02
eClass 10.0
27-40-06-02
ETIM 7.0EC001285
eClass 9.127-40-06-02
UNSPSC30-21-18-01

Approvals

ROHS
Conform

Downloads
